Description

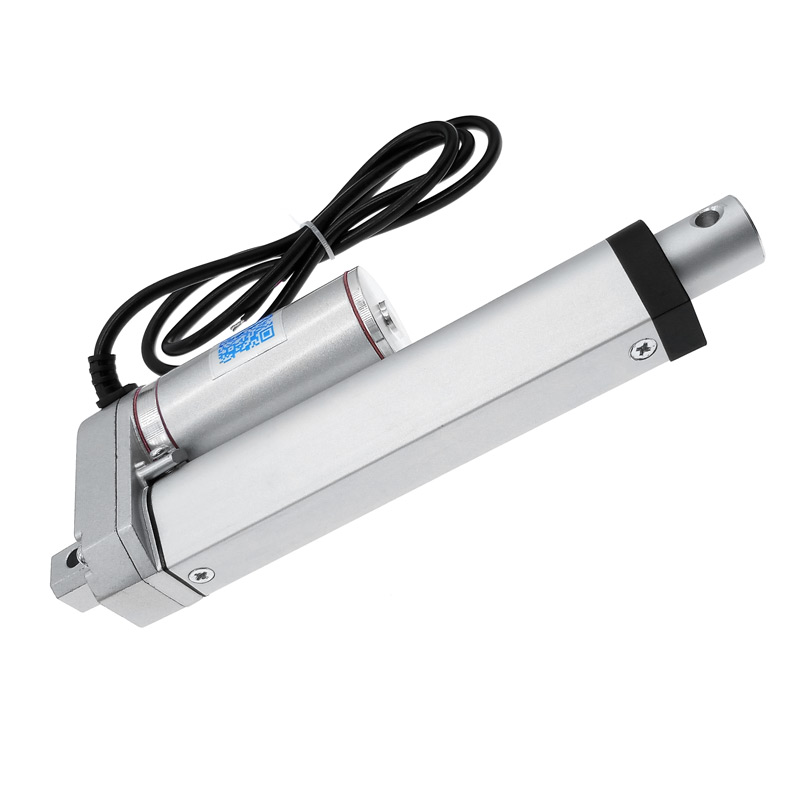

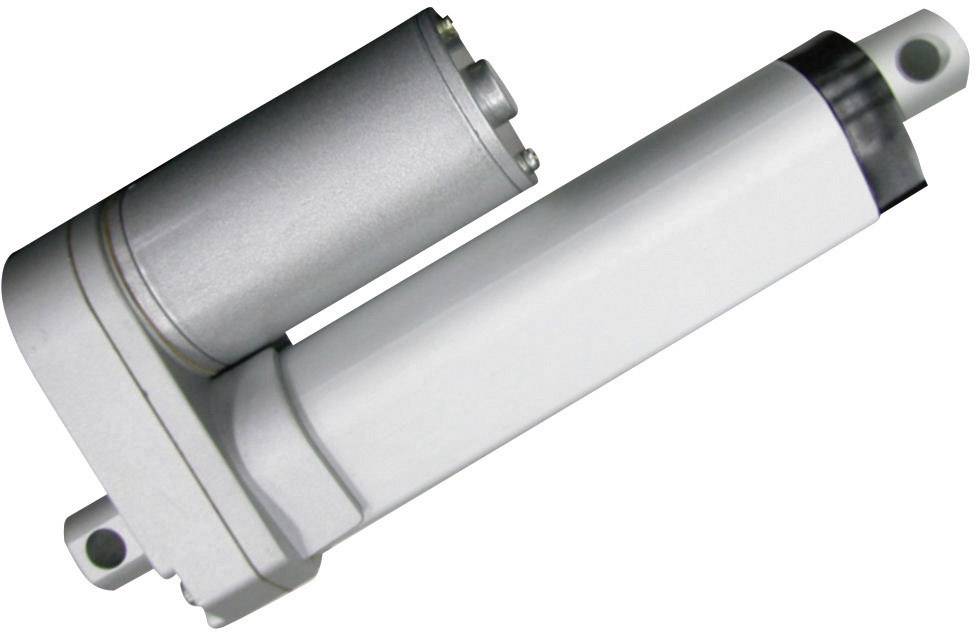

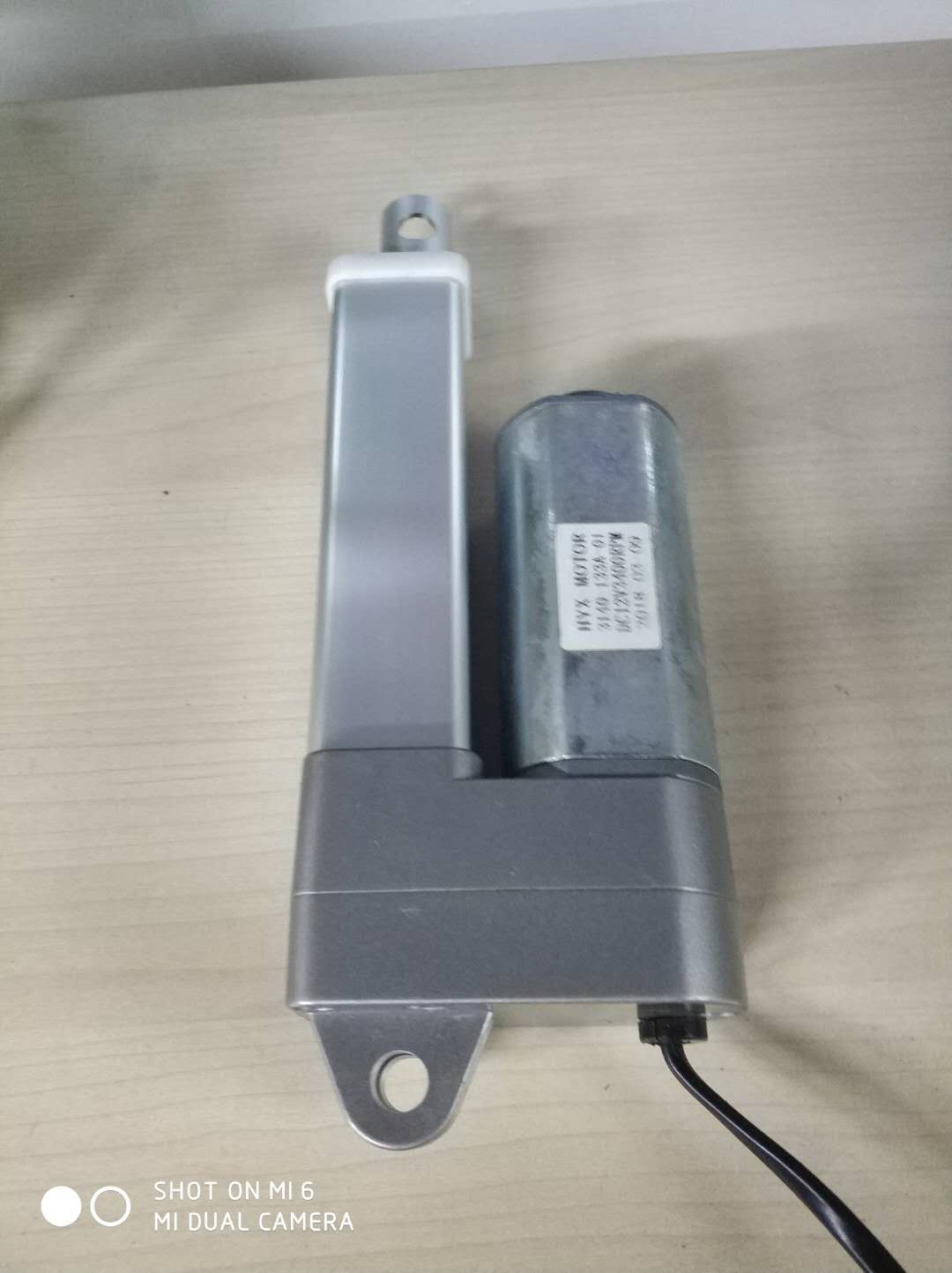

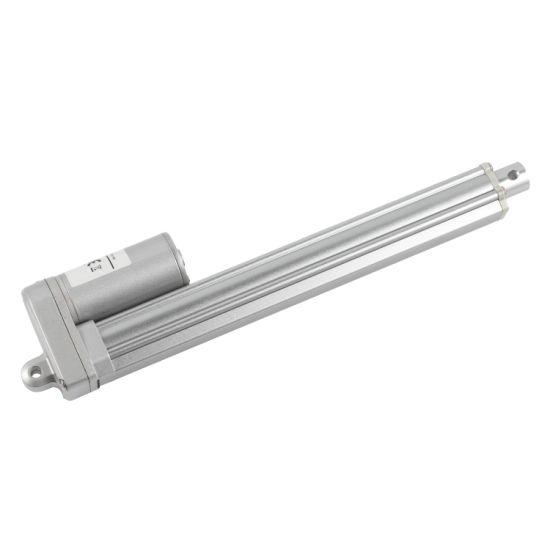

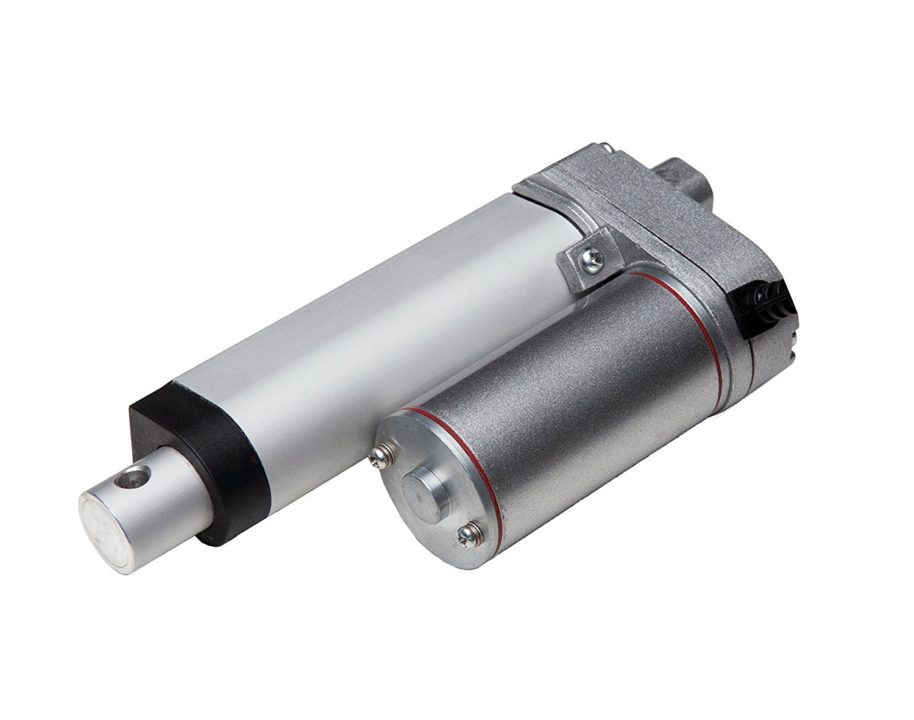

When you demand top-tier reliability and maximum efficiency in your solar tracking systems, the OD3 Heavy Duty 10000N Linear Actuator from Jimmy Technology delivers. Engineered for the toughest outdoor environments, this actuator sets the standard for robust, high-force automation—ensuring your photovoltaic (PV) system captures every ray, every day.

Features and Benefits

Constructed from rugged, high-grade materials
The OD3’s stainless steel extension tube and aluminum protection tube shield it from corrosion, UV exposure, and extreme weather, guaranteeing years of service in demanding PV installations.
Massive 10,000N thrust capacity
With its 10000N push/pull rating (roughly 1 metric ton), this actuator confidently handles the heaviest solar panels, wind and snow loads, and high-load CSP or heliostat applications.
Weatherproof IP66 protection
Fully sealed against dust, dirt, and powerful water jets—the OD3 actuator is built for outdoor use in harsh climates, from sun-scorched deserts to icy wind-blown fields.
Reliable DC power
Flexible input of 12V or 24V DC ensures easy integration into standard solar tracker power systems and renewable energy installations.
Precision signal feedback
Choose from integrated potentiometer or switch signal feedback for high-accuracy positioning. This allows for seamless control, automated sun alignment, and real-time monitoring within your solar tracker control system.
Built-in safety and protection
A built-in switch and current-limiting circuit prevent overloads and protect your solar tracker components—backed by powder metallurgy metal gears for quiet, maintenance-free operation.

Wide Applications

Perfect for heavy-duty applications where reliability is non-negotiable, the OD3 Heavy Duty 10000N Linear Actuator powers:

Utility-scale and commercial solar trackers (single-axis, dual-axis)
Concentrated solar power (CSP) heliostats
Automated agricultural solar arrays
Industrial tracking systems facing extreme wind or snow
Any outdoor automation that demands strength, precision, and proven weather resistance

Specifications

Force: 10,000N (heavy-duty thrust for solar, PV, and industrial use)
Speed: (Consult technical datasheet for application-specific speed options)
Stroke Length: (Available in multiple lengths – see product options or contact support)
Input Voltage: 12V or 24V DC
Protection Rating: IP66 (Dust-tight and powerful water jet proof)
Operation Temperature Range: -25°C to +65°C
Feedback Options: Potentiometer or switch signal feedback
Materials: Stainless steel extension tube, aluminum protection tube, powder metallurgy gears
Safety: Built-in switch and current-limiting overload protection

Technical Support

At Jimmy Technology, our support goes beyond the sale. You’ll get full technical documentation, CAD models, wiring diagrams, and expert integration advice—making installation smooth whether you’re upgrading a single tracker or engineering a full solar farm.

Conclusion

Choosing Jimmy Technology means investing in market-leading quality, advanced innovation, and unwavering reliability for your high-load solar automation projects.
