Imagine a long production day. Machines run non-stop, gears hum, cylinders push and pull with perfect rhythm. Then, suddenly, something grinds to a halt. Dust, water, or chemicals have sneaked past the seals and now the machine is stuck. You call for help. Downtime starts ticking. Every minute lost means money lost. Nobody wants this nightmare.
We’ve seen it all at Jimi Technology. Factories, mines, and food plants all count on reliable motion. The truth is, a cylinder might be small, but in the wrong environment, it can be a big weak spot. Dust, water from jets or rain, chemicals, extreme cold or heat, and even a good shake from a heavy machine—these can wreck standard cylinders fast. The secret to stopping this? Start with the right IP rating.
Understanding IP Ratings: Your First Line of Defense
Not all cylinders are made to handle the same battles. IP ratings show how tough they are against dirt and liquid.
What is an IP Rating?
The IP code (Ingress Protection) tells you how much a part can stand up to solids like dust and liquids like rain or cleaning jets. It’s like an armor rating for machine parts.
You’ll see codes like IP66, IP67, or IP69K.
- The first digit is for dust and solids.
- The second digit is for water, from drips to deep submersion.
Solids Protection (First Digit: 0-6):
- 5: Dust protected. Some dust might get in, but not enough to hurt.
- 6: Dust tight. No dust gets in at all.
Liquids Protection (Second Digit: 0-9K):
- 5: Water jets. Stands up to low-pressure jets from any angle.
- 6: Powerful water jets. Even stronger protection.
- 7: Temporary immersion. You can dunk it for a short time and it survives.
- 8: Continuous immersion. Stays working even under water.
- 9K: High-pressure, hot-water washdown. Think about the super-tough scrubbing in food factories.
So, IP67? It’s both dust tight and can survive a dunk in water.
IP69K? It laughs at high-pressure, high-temp cleaning sprays.
Why Standard Cylinders Fail in Harsh Conditions
Standard cylinders aren’t built for every warzone. Here’s how things usually fall apart:
- Dust sneaks in: It grinds down moving parts, clogs seals, and causes abrasion.
- Water attacks: Moisture gets past loose seals leading to rust, swelling, or freezing.
- Chemicals leak in: The wrong elastomer or coating dissolves or swells, ruining seals and rods.
- Heat and cold:
- Extreme heat melts grease or deforms seals.
- Bitter cold makes rubber brittle.
- Vibrations and shocks: Loose parts, failing mounts, and cracks start to form in weak housings.
Downtime from these failures isn’t just frustrating. It’s expensive. Repairs, loss of output, delayed orders, and even safety risks pile up.
Key Environmental Factors and Corresponding IP Considerations
Pick the environment, and we’ll show you the trap — and the shield.
Dust & Particulates (Wood, Mining, Cement)
In sawmills, cement plants, or mining, fine dust is everywhere.
You need: IP5x or IP6x—dust protected or dust tight.
Material matters: Hard-chromed rods, stainless steel, double wiper seals, and protective bellows keep the grit out.
Water Exposure (Washdown, Outdoors, Marine)
Factories clean daily. Outdoor gear faces rain, spray, and immersion. Salt air at marine ports can rot metal overnight.
You need: IPx5, IPx6, IPx7, IPx8, or IPx9K—think about the water threat and cleaning cycles.
Material matters: 316 stainless steel, polished rods, quality seals (EPDM, Viton), and no exposed threads. On ships? Go marine-grade all the way.
Chemical Exposure (Plants, Food Processing)
Some environments throw acid, caustic cleaners, or solvents at cylinders.
You need: The right IP based on splash or vapor + chemical-resistant materials.
Material matters: PTFE coatings, Viton or FFKM seals, and sealed connectors. Explosion-proof if gases might be present.
Extreme Temperatures (Foundries, Refrigerators)
Insane heat melts or breaks down seals. Freezing cold shrinks or cracks rubber.
You need: Seals and grease that can take the heat or cold.
Material matters: High/low-temp elastomers, specialized lubricants, and sturdy bearings.
Vibration & Shock (Mobile, Heavy Equipment)
On trucks, heavy machines, and railways, shaking is non-stop.
You need: Not just a high IP rating, but a tough design.
Material matters: Reinforced cylinder bodies, secure mounts, strong rod materials.
Critical Factors in Choosing Your IP-Rated Cylinder
1. Know Your Battlefield
List your challenges—dust, water, spray, chemicals, heat, cold, shaking. Check temperature swings and how rough things get.
2. Pick the Right IP Rating
Don’t go too high (and overspend) or too low (and regret it).
- Most dusty areas: IP65 or IP66.
- Wet/washdown: IP67, IP68, or IP69K.
- Heavy shake: Look for sturdy mounts and structure.
3. Material Selection
- Body: Stainless steel or anodized aluminum fights rust and chemicals.
- Rod: Choose hard chrome, ceramic coats, or special alloys.
- Seals/Gaskets: Match to the threat. Nitrile is basic, Viton for chemicals, EPDM for hot water or steam, Polyurethane for toughness.
4. Smart Design for Survival
- Use wiper seals and scrapers for dust.
- Bellows and boots for rod protection.
- Drain/breather ports for condensation.
- Cable glands and connectors sealed against water.
5. Care for Longevity
Schedule regular checks, keep it clean, replace seals, and check for leaks. A minor fix now saves a major headache later.
Real-World Success: Case Studies & Applications
Food Processing:
Daily high-temp, high-pressure cleanings once destroyed cylinders. When a meat plant switched to IP69K cylinders with 316 stainless steel and Viton seals, downtime dropped by 70%. Cylinder replacement fell by 65%. Money saved? Huge.
Mining:
Dust, mud, and submersion hit hard. An open-pit mine moved to IP67 cylinders with protective bellows. Cylinder life quadrupled. More mining, less fixing—a clear win.
Chemical Plant:
Corrosive fumes and acid used to eat seals alive. One facility picked cylinders with FFKM seals and PTFE coatings. Seal failures fell by 80%. Safety improved. Catastrophe avoided.
Marine:
Saltwater spray and storms destroy standard parts. Coastal port cranes with IP68 stainless cylinders saw their parts last 2–3 times longer. Fewer replacements, smoother work.
General Manufacturing:
Shops with lots of metal shavings and cutting fluids switched to IP65 cylinders with rod wipers. They saw a 30% drop in maintenance and saved 15 hours a month on repairs.
Partnering with the Right Supplier
There’s no substitute for experience. At Jimi Technology, we do more than sell. We guide, build, and deliver solutions.
- Custom Engineering: Every setting is unique. You give us your specs, and we create just what you need—from special coatings to unique sizes.
- Materials Science: We help you match the cylinder body, rod, and seals to your exact danger zone.
- Support: Documentation, technical help, and after-sales support come standard.

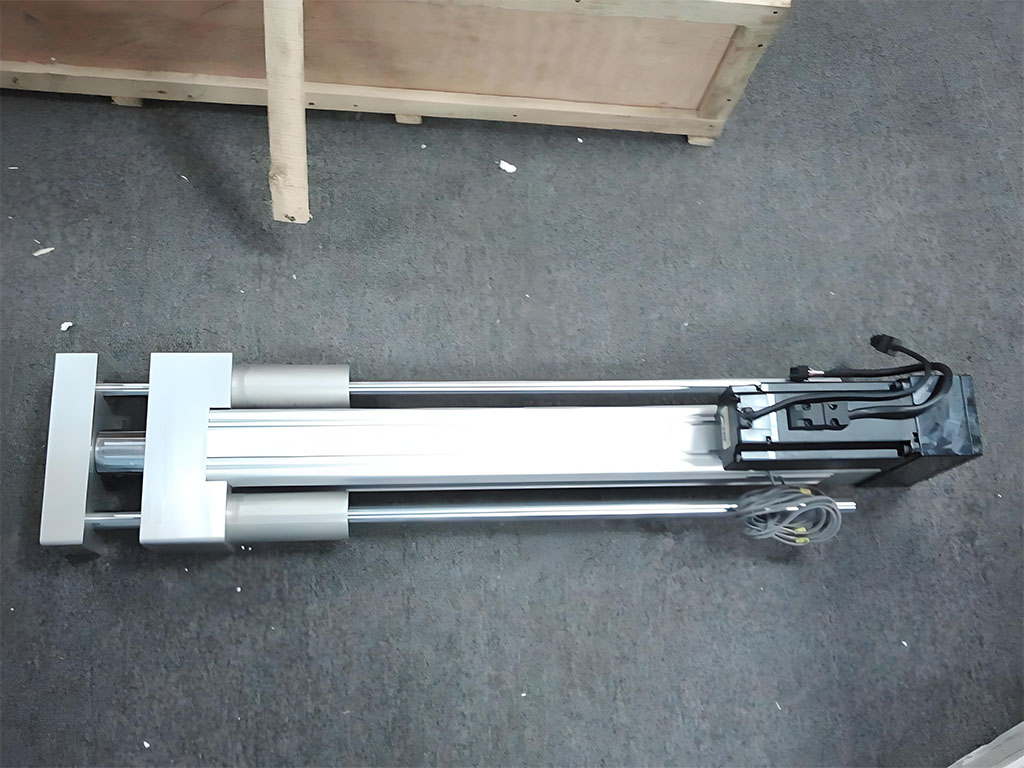

As a trusted China Electric Cylinder Factory, we supply everything from Stainless Steel Actuators for food lines, to Waterproof Linear Actuators for outdoor robots, to Industrial Linear Actuators by the thousands. Our Engineered Automation Solutions stretch from home to the harshest industrial applications.
Table: Impact of Environment & IP Protection Value
| Environment | Trouble Without the Right Cylinder | Best IP Rating | Material Edge | Gains After Upgrade | True Stories |
|---|---|---|---|---|---|
| Food Processing | Hot water, caustic cleaners wreck seals and rods | IP69K, IP68 | 316SS, Viton, epoxy coats | 70% less downtime | Plant replaces 65% fewer cylinders—big labor/materials savings |
| Mining/Construction | Dust, mud, water kill seals | IP66, IP67, IP68 | Bellows, hard chrome | 4x longer life | Mine swaps and maintenance cut deeply after upgrade |
| Chemical Processing | Fumes, splashes dissolve seals | IP65, IP66 | FFKM seals, PTFE coat | 80% fewer seal breaks | Safety and uptime soar with chemical-proof cylinders |
| Marine/Outdoor | Saltwater and rain corrode | IP66, IP68 | 316SS, marine coatings | 2–3x longer component life | Crane parts last far longer, routine replacement drops |
| Manufacturing | Dust and shavings abrade rods | IP65, IP66 | Double wipers, boots | 30% lower maintenance | Shop saves 15 labor hours/month, less production lost |
Why Jimi Makes the Difference
Every industry, every challenge, we’ve been there. Our team tests and builds actuators, cylinders, and systems to keep going when others fail. Customers stay with us because we help them run longer, safer, and smarter.
- World-class factories
- Full in-house testing on all IP ratings
- Real experts, real solutions
Don’t let dust, water, or chemicals ruin your day.
Don’t trust your uptime or safety to luck or untested suppliers.
Choose a partner who’s seen the worst—and built for it.
Let’s Build the Future Together
When you need a cylinder that won’t quit—no matter what—the first move is clear: get the right IP rating and design for your world. You’ll keep your lines running, your workers safe, and your costs way down. Think long, think strong, think Jimi.
Ready to solve your harsh environment challenges for good? Talk to our experts for a custom recommendation, or explore our robust IP-rated actuators and cylinders now. Your uptime is worth it.
