Description

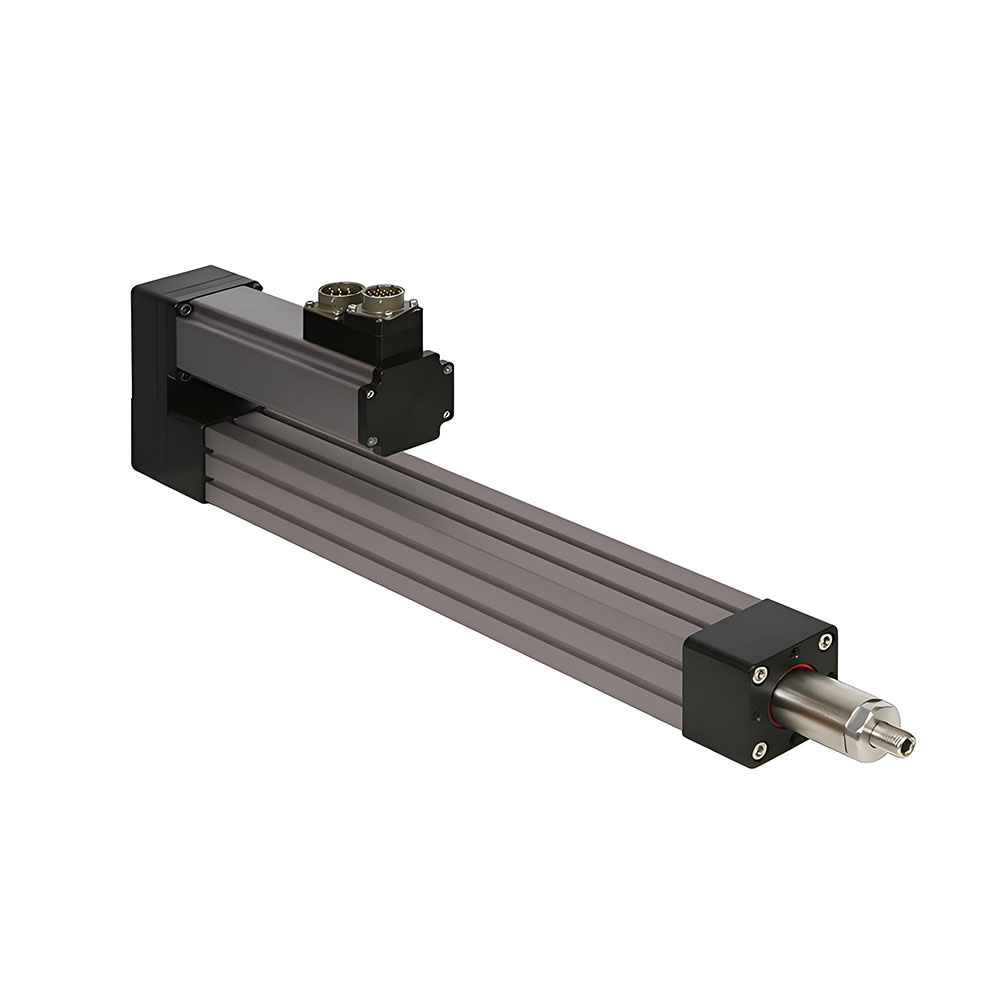

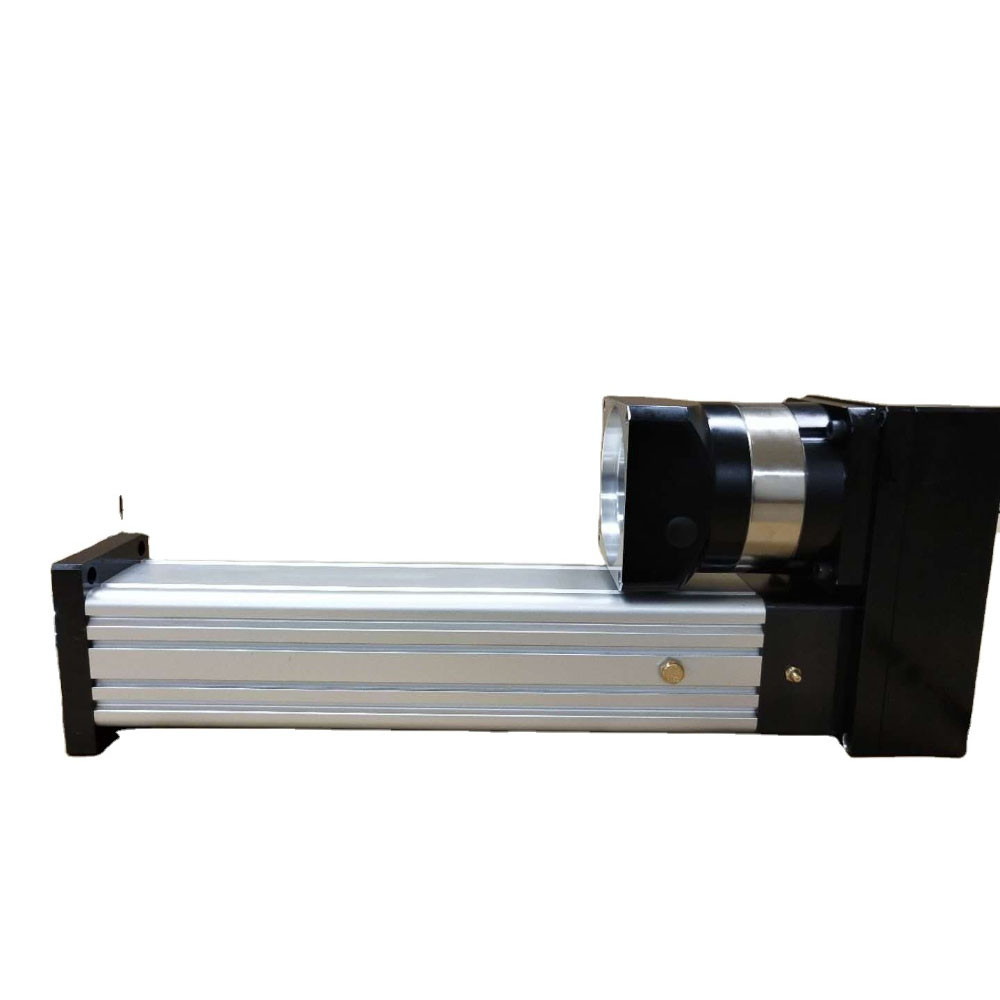

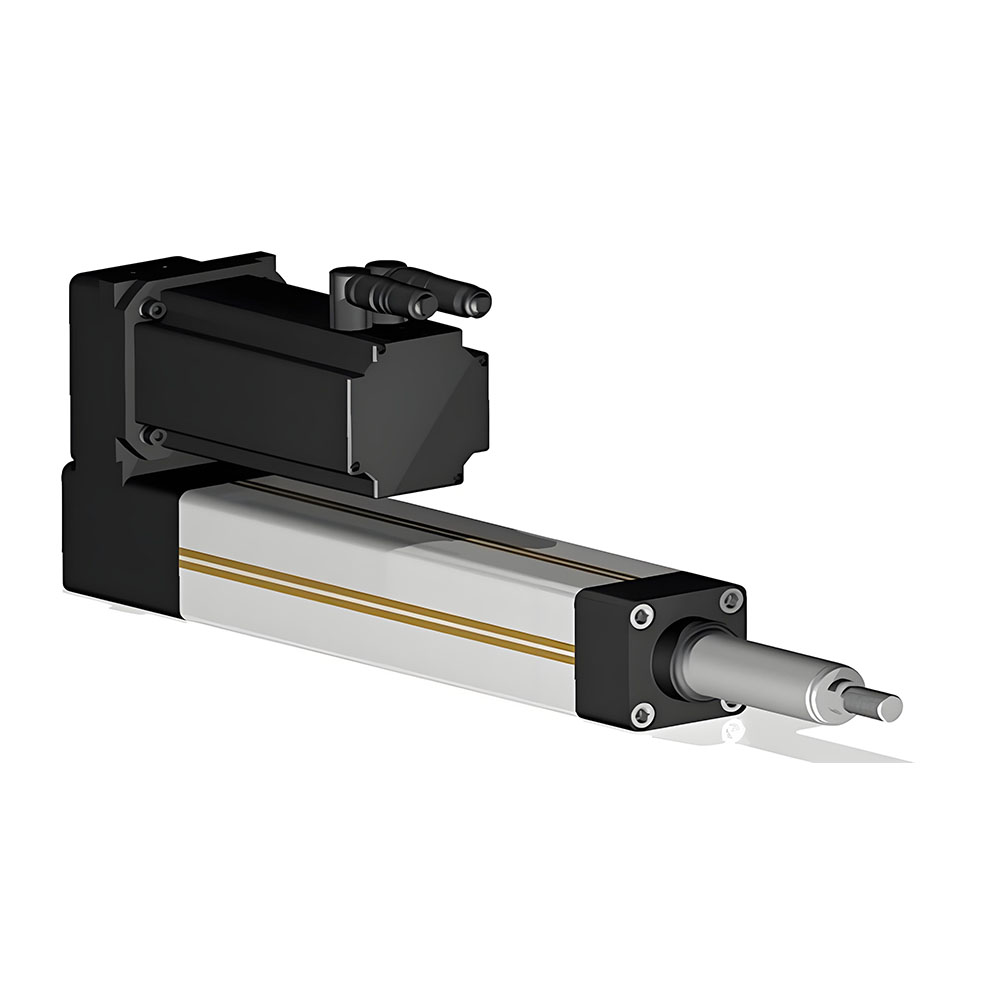

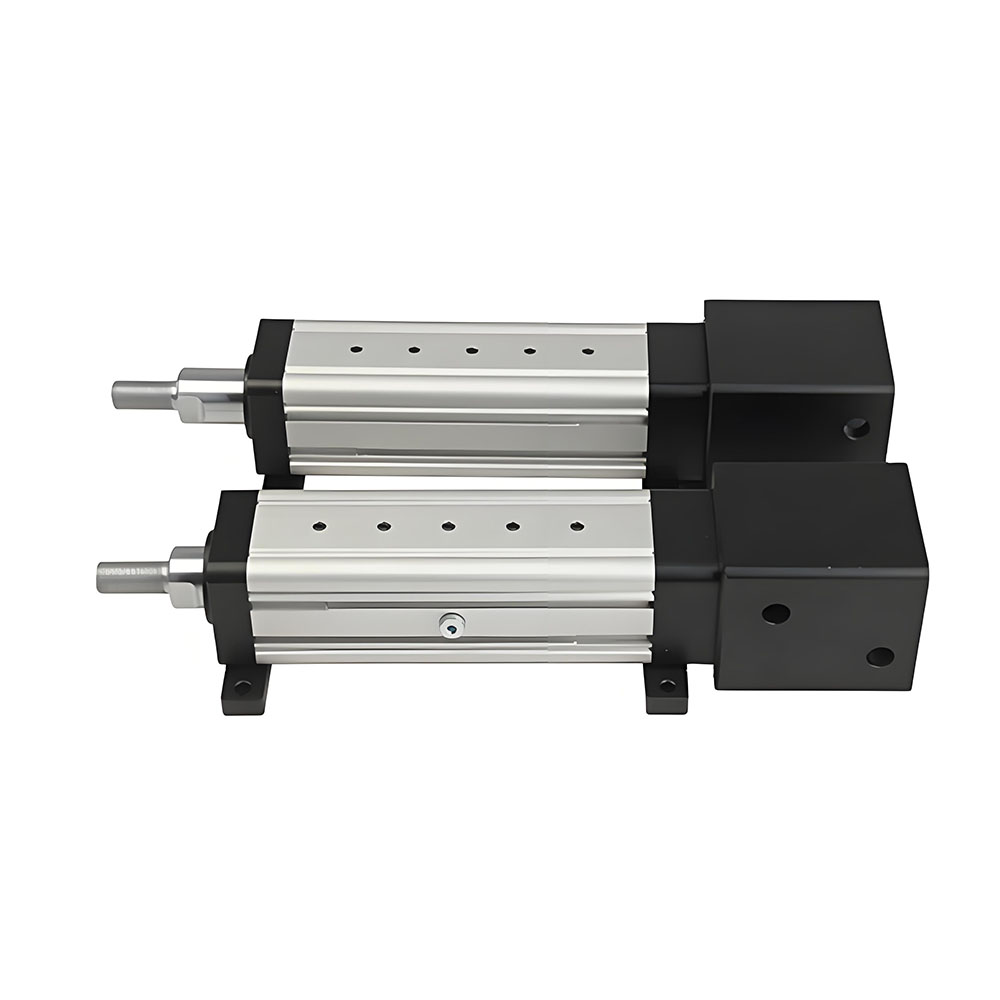

Experience the pinnacle of high-force, precision-driven industrial automation with the 75 Series High Thrust Servo Linear Actuator from Jimmy Technology—direct from our factory to you. Unleash the ultimate combination of high thrust, precision linear actuation, and rugged reliability, designed to tackle the most demanding applications.

Features and Benefits

Rugged Heavy-Duty Performance: The 75 Series is built for high thrust electric actuator requirements, offering unmatched continuous force—ideal for replacing cumbersome hydraulic cylinders or powering large-scale pressing, lifting, and material handling systems.
Precision Servo Linear Motion: Thanks to servo motor integrated actuator technology, you achieve pinpoint accuracy and repeatability (±0.01 mm to ±0.03 mm), critical for applications demanding tight tolerances—such as precision manufacturing or automated inspection.
Superior Construction for Harsh Environments: Manufactured from high-grade aluminum and stainless steel, this actuator not only resists corrosion but is also available in rating options up to IP65 and NEMA 4X—perfect for challenging industrial settings, cleanrooms, and washdown environments.
Integrated Control and Feedback: Easily interface with PLCs, HMIs, and popular servo drive platforms. Choose from absolute or incremental encoder options for real-time feedback and advanced closed-loop motion control.

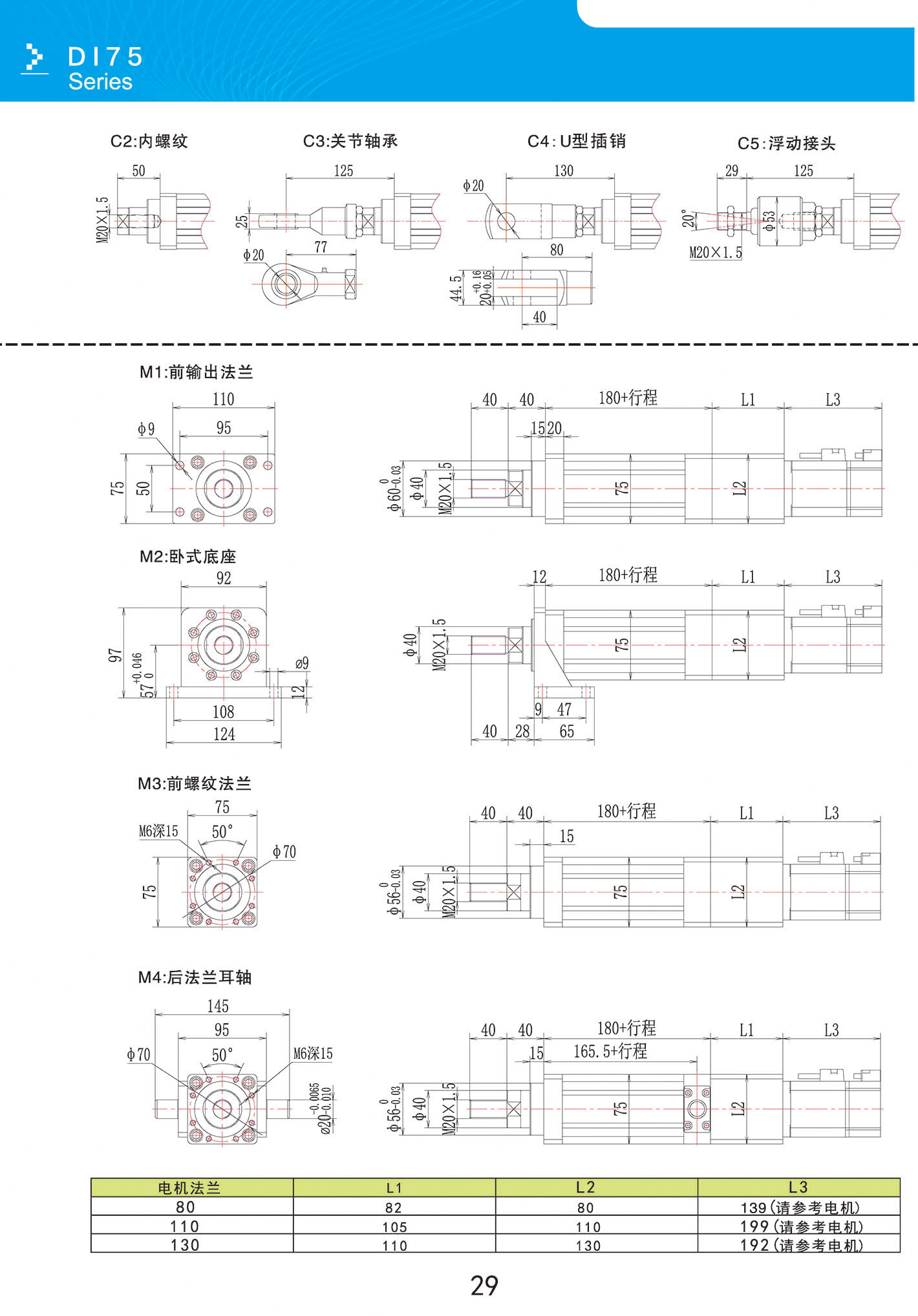

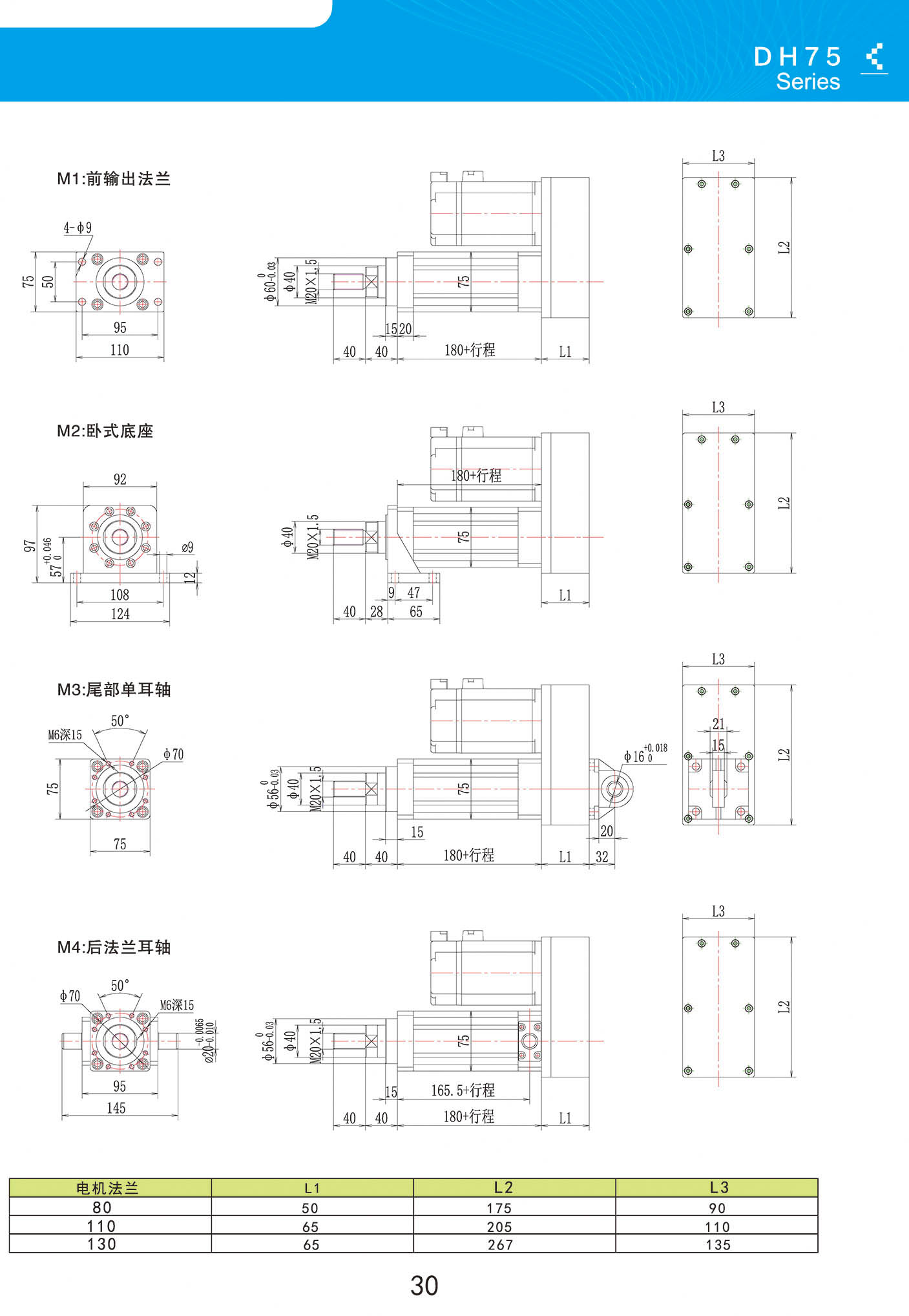

Flexible and Customizable: The 75 Series supports customizable stroke lengths (100 mm to 2000 mm), multiple mounting options, and even specialized actuator designs for OEMs—ensuring seamless integration into almost any machine or process.
Energy Efficient and Maintenance-Free: Eliminate oil leaks, reduce noise, cut energy consumption by up to 80% compared to hydraulic systems, and enjoy a virtually maintenance-free solution with a life expectancy of over 100 million cycles.

Wide Applications

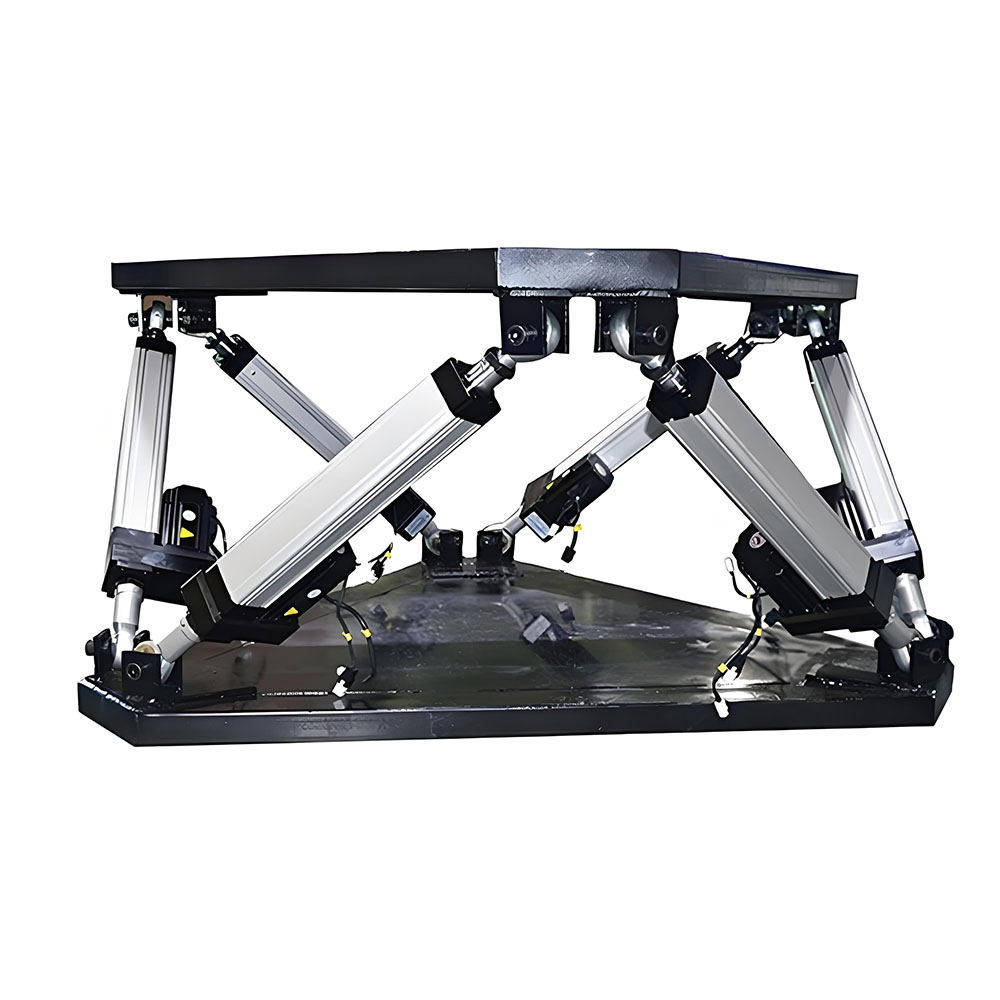

This actuator is the ideal choice for your automation projects—including, but not limited to: automotive assembly lines, robotic welding, heavy-duty material handling systems, packaging machinery, test stands and simulation in aerospace, medical device positioning, food and beverage production, and any application demanding outstanding force and accuracy. It is also perfect for advanced home automation, solar tracking systems, and custom automotive builds, thanks to its broad range of customizable options.

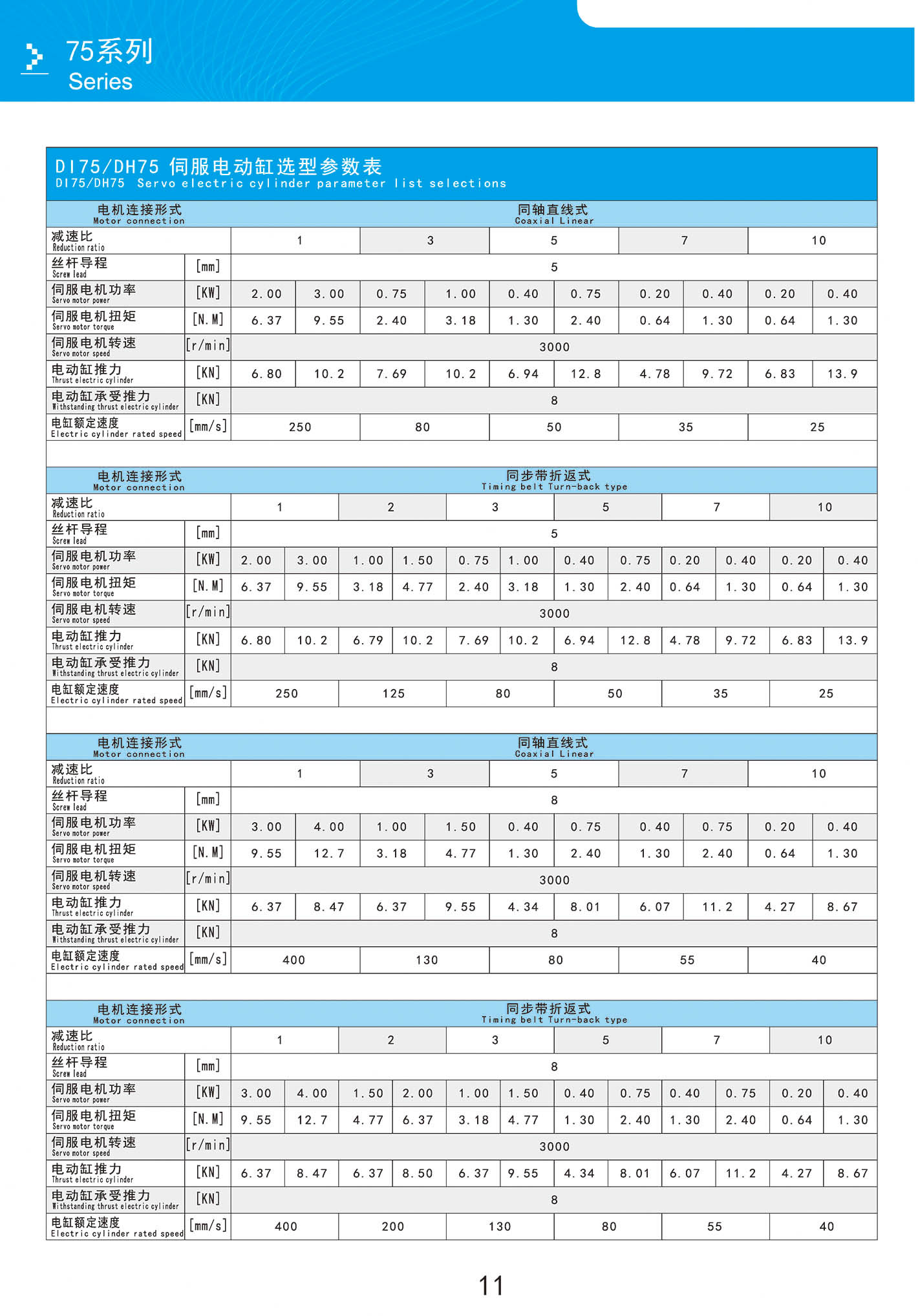

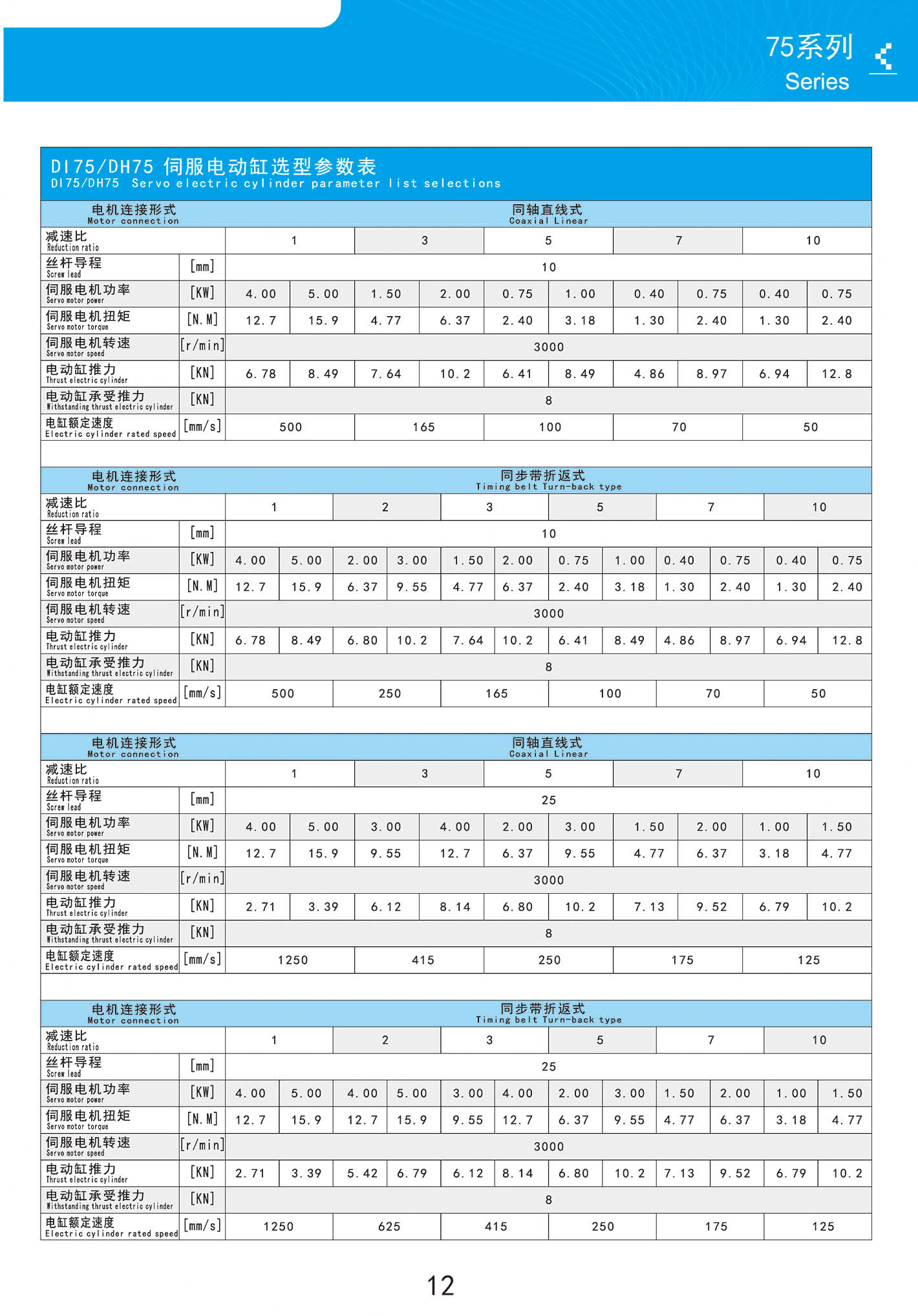

Specifications

Force: 10 kN to 200 kN (2,250–45,000 lbf), handle the heaviest loads with confidence
Speed: 500 mm/s to 1500 mm/s, for fast, dynamic industrial cycles
Stroke Length: 100 mm to 2000 mm (custom lengths available)
Input Voltage: Compatible with most industrial servo and drive voltages
Protection Rating: Up to IP65/NEMA 4X (sealed for dust and water resistance; safe for outdoor or washdown use)

Technical Support

We provide comprehensive technical support for this product—including detailed CAD models, technical datasheets, and wiring diagrams—to ensure smooth and easy integration into your automation project. Our expert engineers stand ready to assist with actuator sizing, selection, or custom application questions.

Conclusion

Choosing Jimmy Technology means you are choosing market-leading quality, relentless innovation, and absolute reliability for every demanding motion control challenge.
