Description

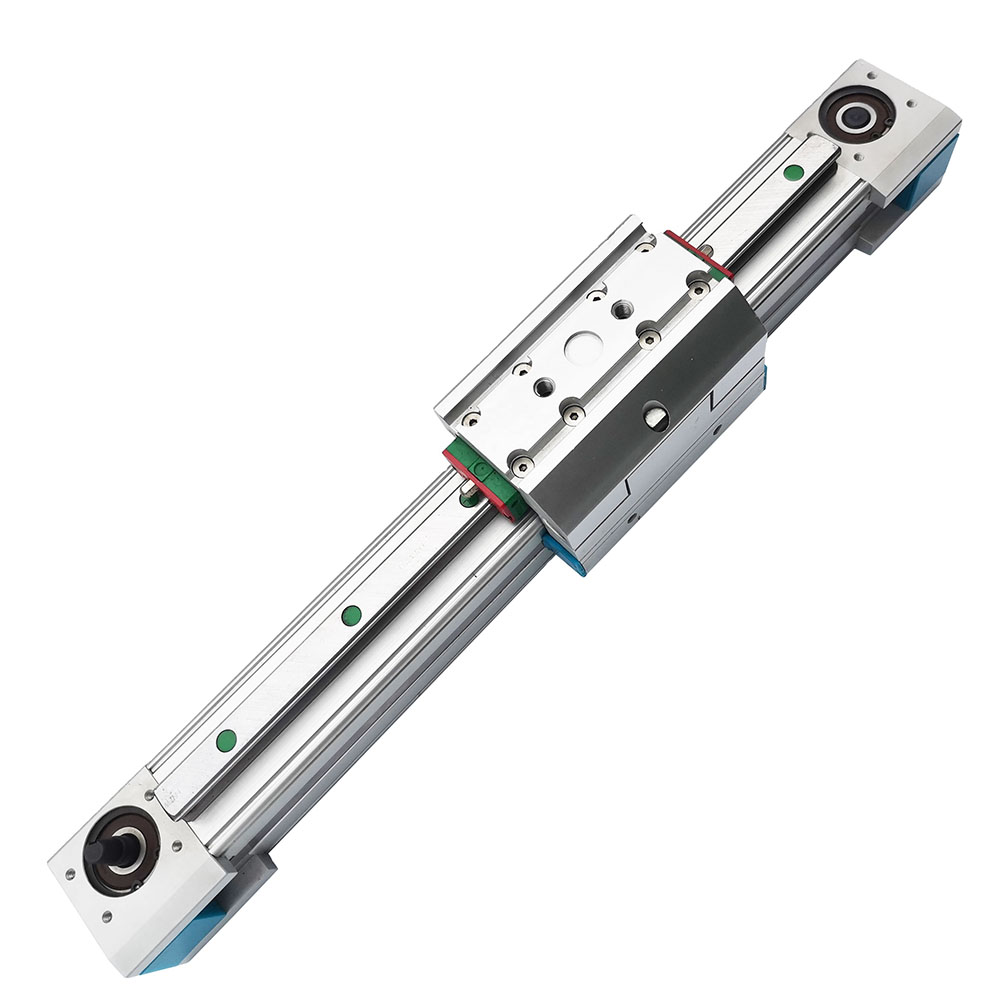

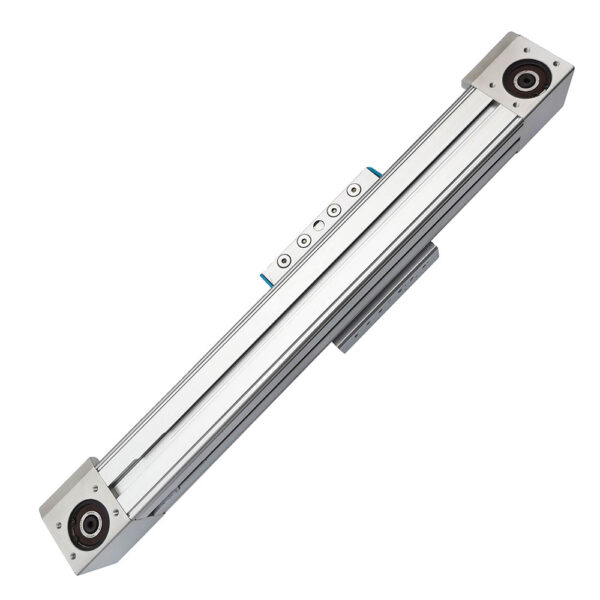

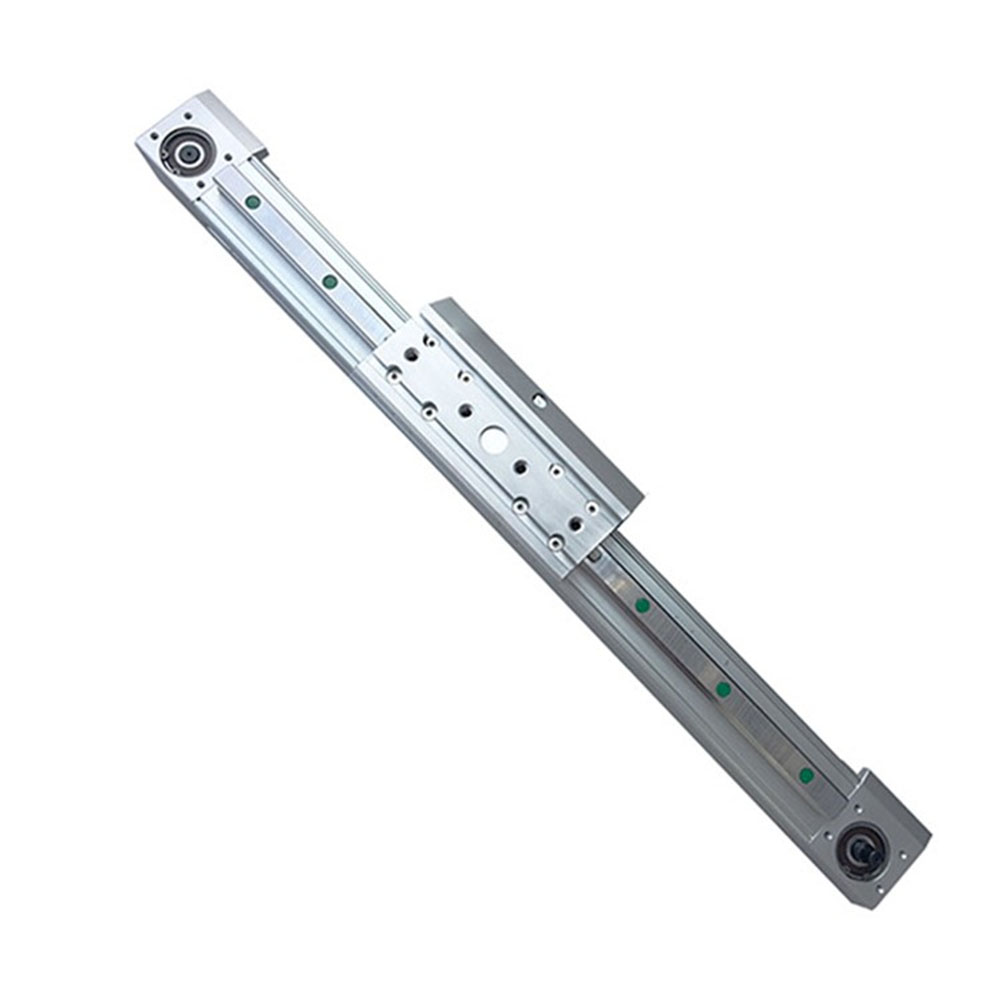

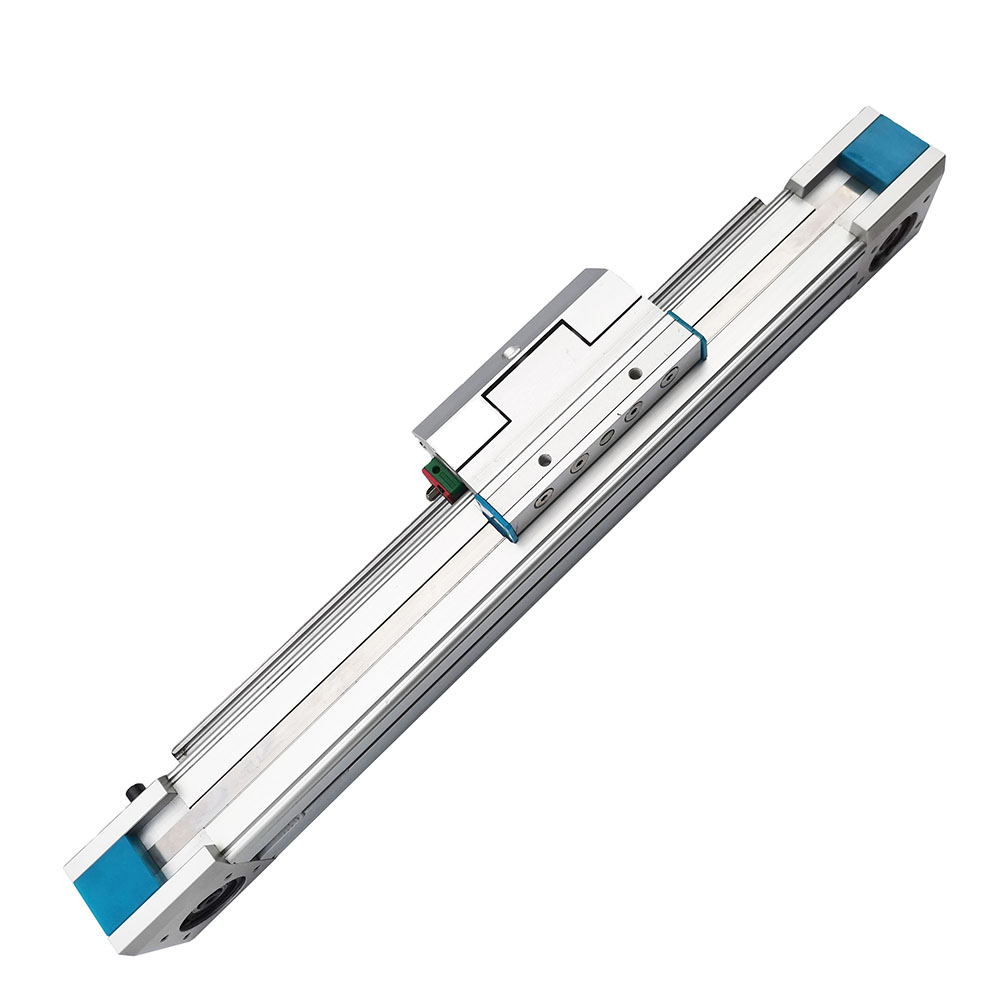

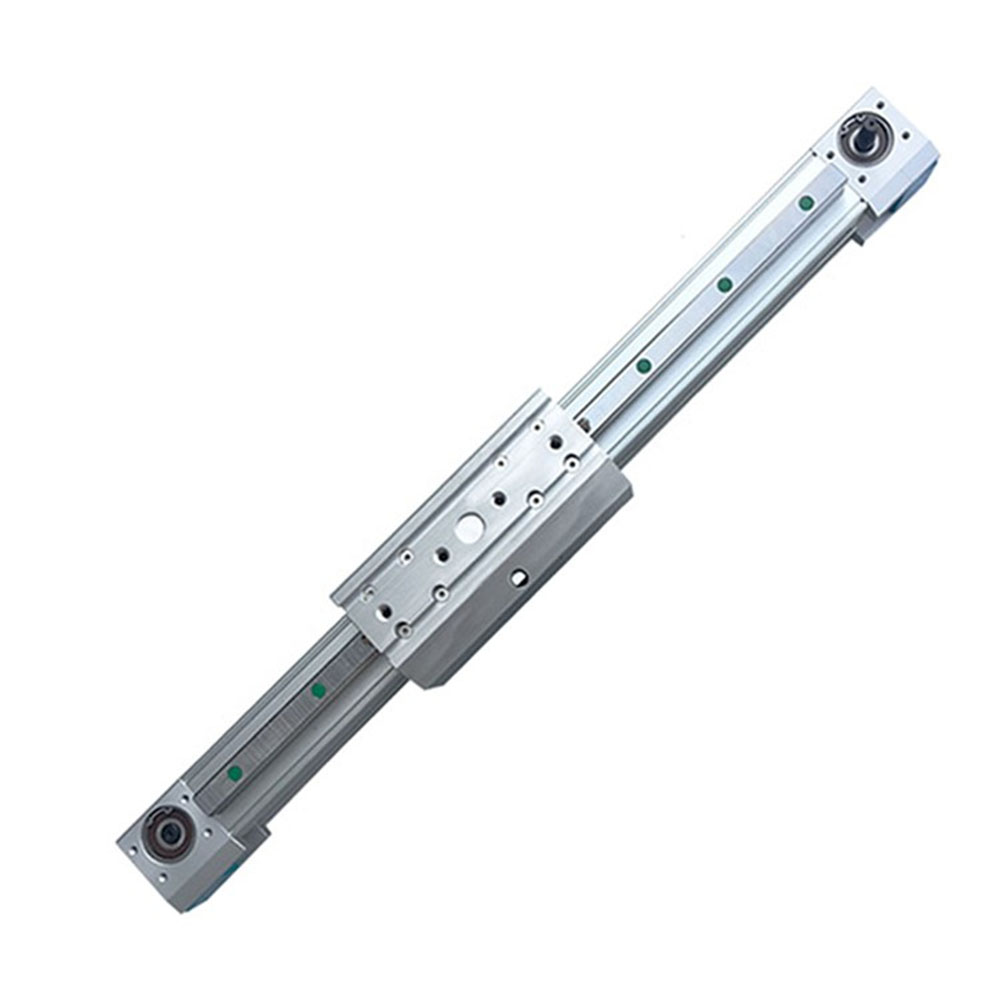

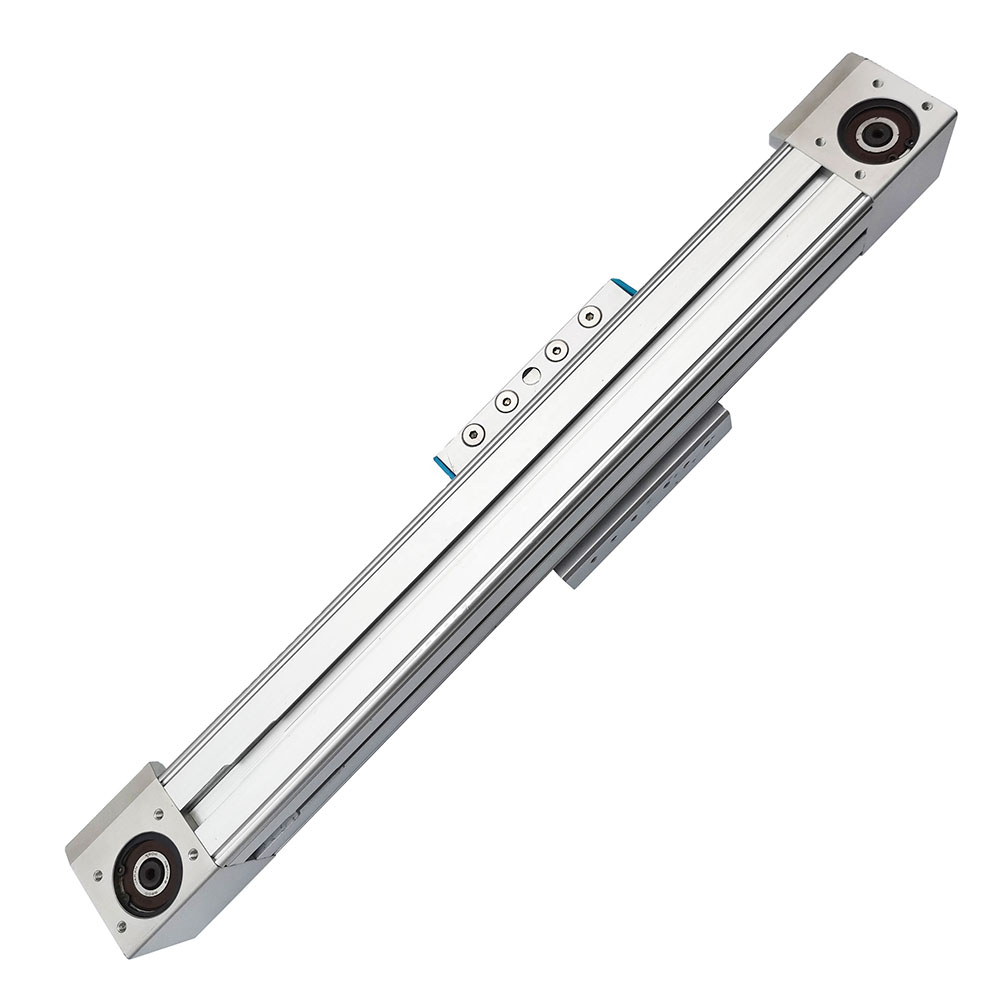

Step up to a new league of automation with the 45-TB High Speed Belt Driven Linear Motion Guide from Jimmy Technology. This powerhouse delivers rapid, precise motion for your critical production tasks, wrapped in a rugged, industrial-grade package built to exceed expectations.

Features and Benefits

Engineered for High Speed and Efficiency
With a belt-driven architecture specifically tuned for fast traverse and repeatability, the 45-TB lets you execute operations at impressive velocity—maximizing throughput while maintaining pinpoint accuracy.
Customizable, Extra-Long Stroke
Need reach? No problem. The effective stroke length spans from just 100 mm up to a robust 4000 mm, allowing you to build scalable, flexible systems for anything from compact cells to extended conveyor setups.
Durable Construction for Demanding Environments
Every unit features a rigid extruded aluminum profile and precision-matched components. This means superior corrosion resistance, high stiffness, and lasting reliability—even in aggressive industrial settings.
Impressive Load Capacity
Capable of handling horizontal payloads up to 25 kg, this linear guide tackles everything from lightweight pick-and-place projects to substantial materials handling. Rely on smooth linear motion, whether you automate packaging, printing, or vision inspection.
Low Noise, Low Maintenance
The belt mechanism delivers smooth, quiet operation far below the clatter of pneumatic or screw-driven alternatives. Spend less time on upkeep and more on building your business—this system’s streamlined design helps keep maintenance to a minimum.

Wide Applications

Engineered for versatility, the 45-TB shines in a multitude of scenarios—from rapid robotic pick and place, to precision inspection and vision systems, automated assembly, high-speed packaging, and light or medium-duty material transfer. Bring efficiency to industries ranging from electronics to medical device production and beyond.

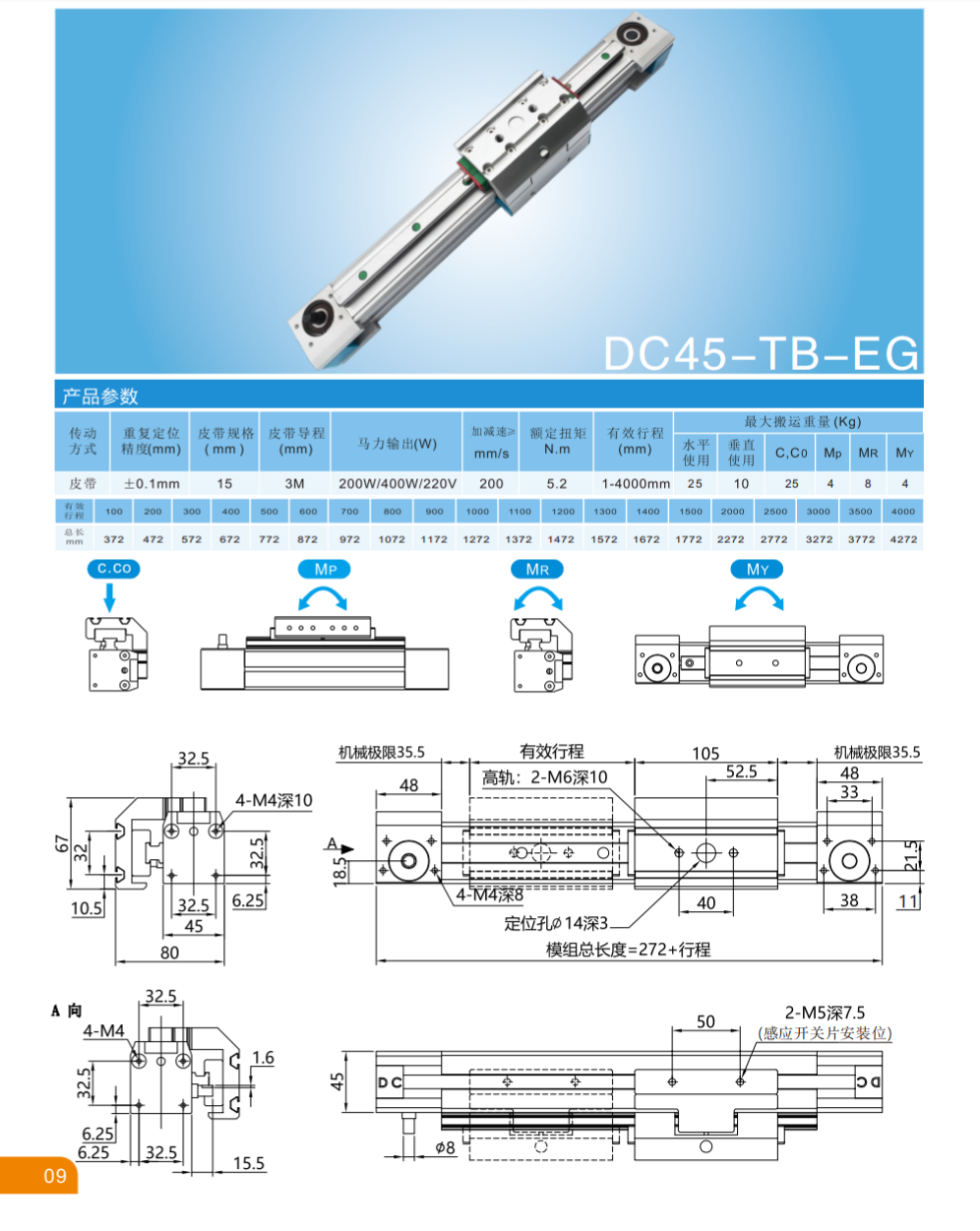

Specifications

Effective Stroke Length: 100 mm to 4000 mm (customizable to your needs)
Maximum Load (Horizontal): 25 kg
Drive Type: High-speed, precision-tuned belt drive
Profile: Extruded aluminum for high rigidity and corrosion resistance
Integrated Motor Interface: Servo or stepper-ready (compatible with most leading brands)
Noise: Low-profile, smooth operation for quiet environments
Protection Rating: (Contact us for specific IP rating options based on your environment)
Repeatability & Accuracy: Tight tolerances for consistent positioning (see datasheet for specifics)
Maintenance: Minimal, designed for high uptime

Technical Support

Jimmy Technology backs every 45-TB High Speed Belt Driven Linear Motion Guide with full technical support. We provide in-depth CAD files, complete technical datasheets, control integration guides, and responsive engineering assistance to make your system design and installation a breeze.

Conclusion

When you demand uncompromising reliability, rapid performance, and industrial-grade durability, choose Jimmy Technology’s 45-TB High Speed Belt Driven Linear Motion Guide—where innovation meets industrial muscle.
