Description

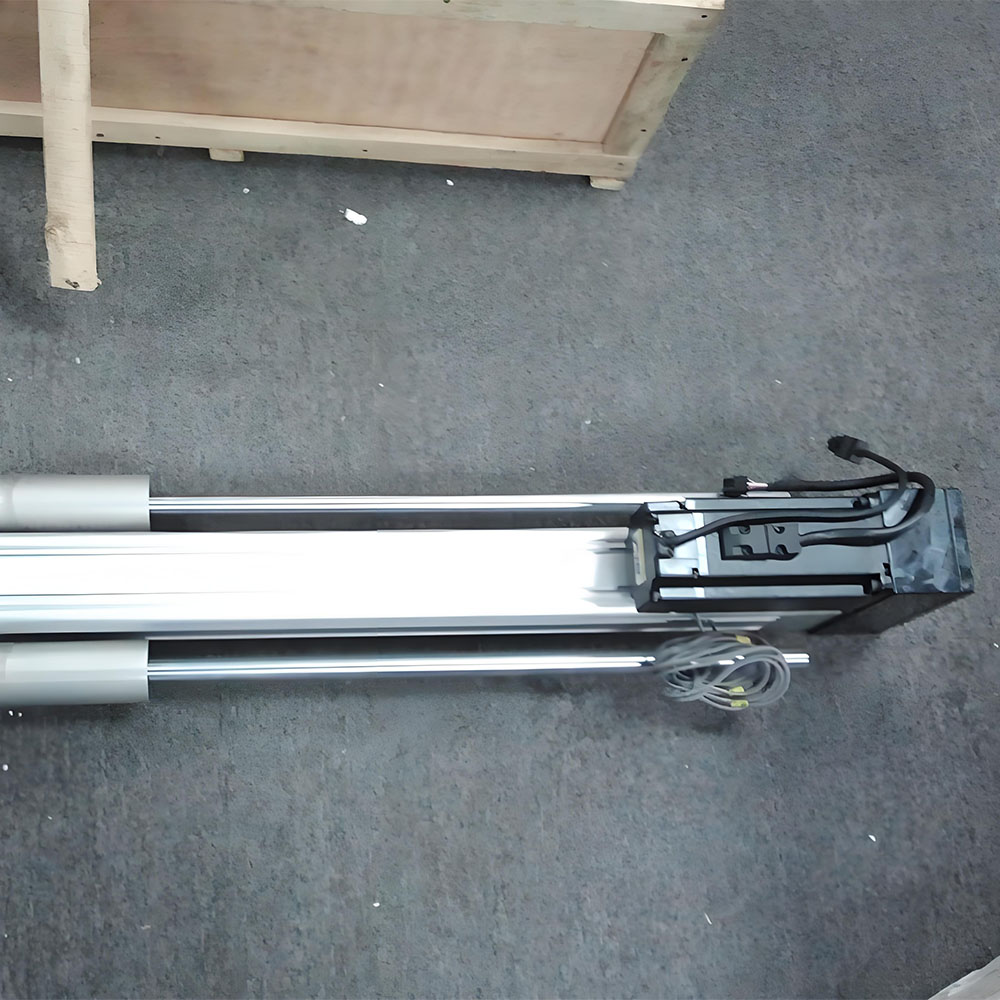

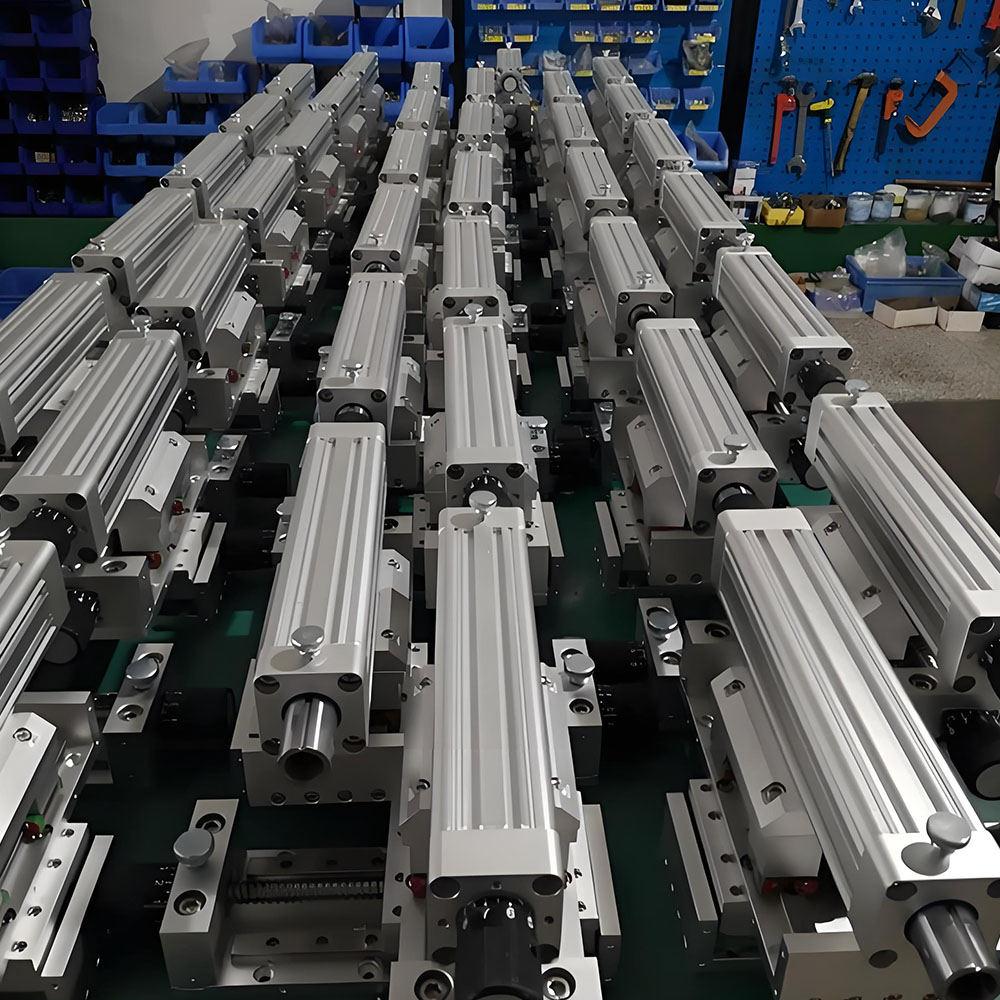

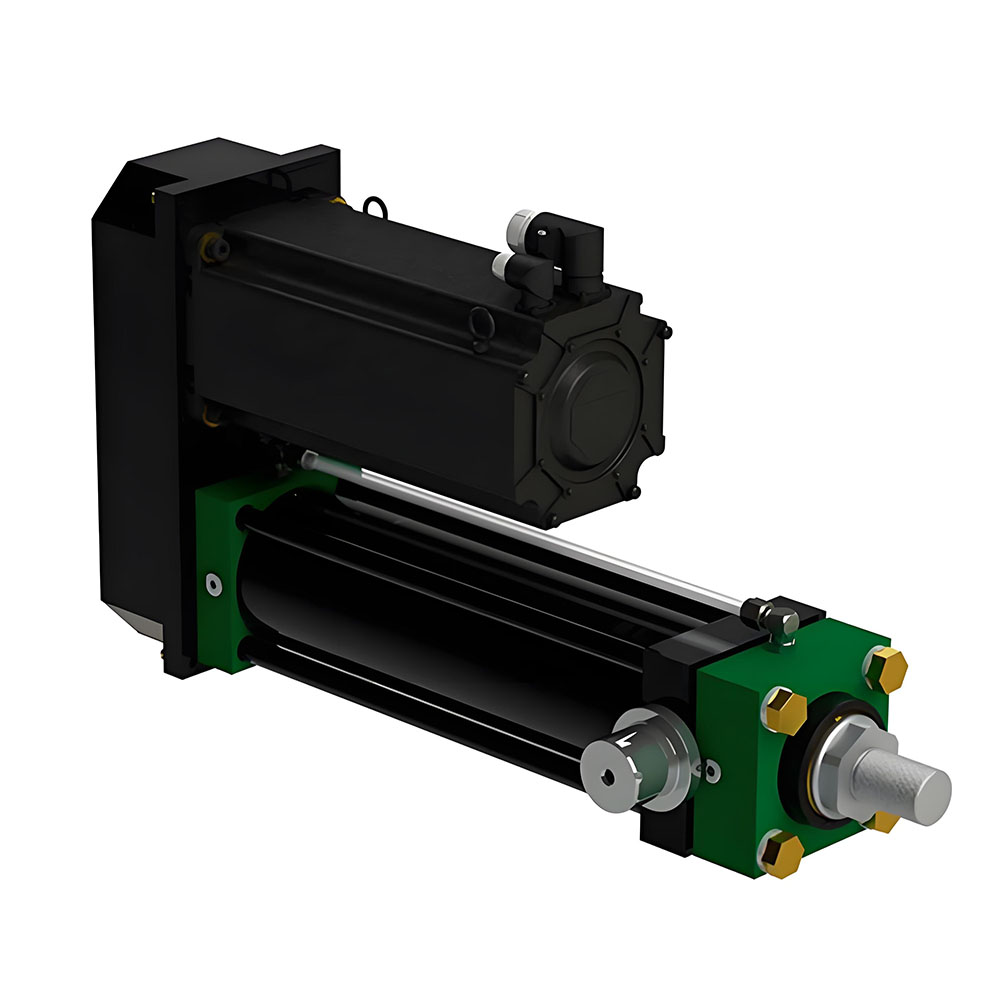

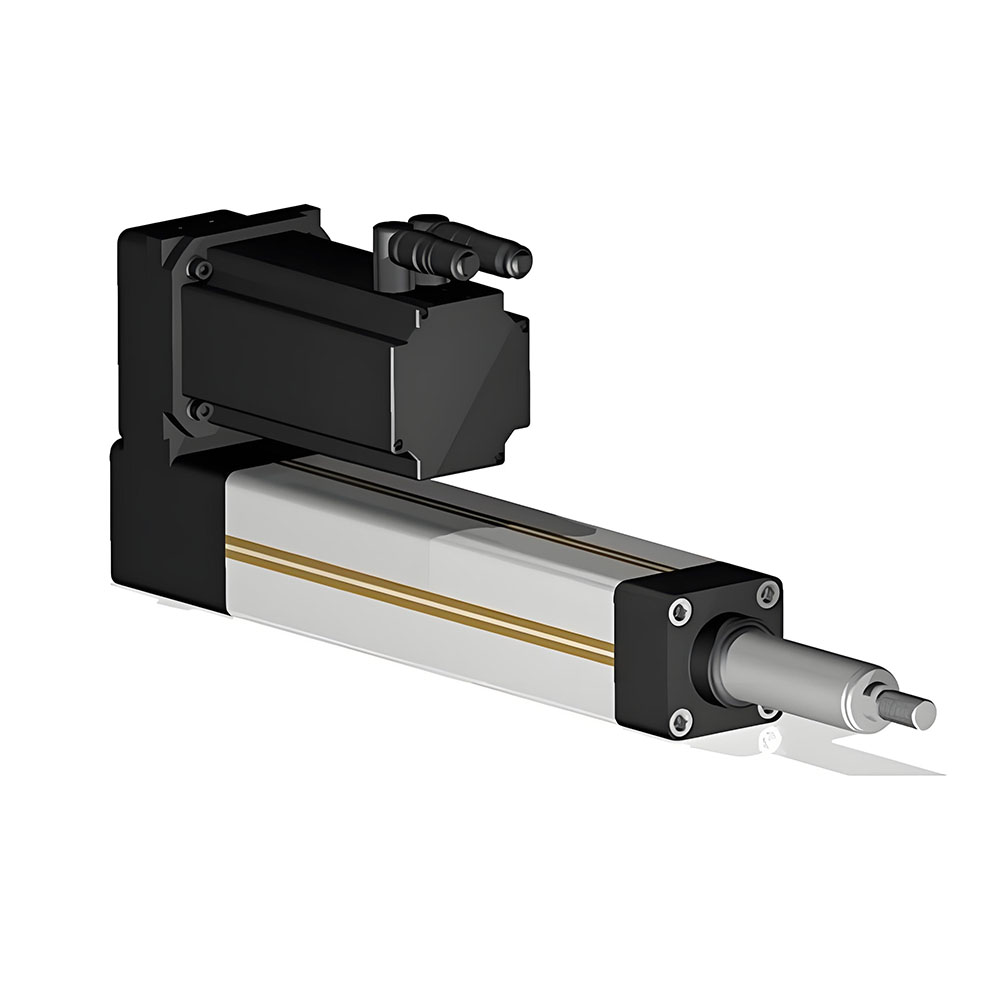

Unlock the next level of precision motion control and force with the 145 Series Custom Servo Electric Cylinder from Jimmy Technology. When your automation demands the ultimate in high accuracy, robust performance, and seamless integration, this electric actuator sets a new industry benchmark.

Features and Benefits

Precision Motion Control: Leveraging advanced servo motor-driven technology and either a high-grade ball screw or roller screw actuator, this electric cylinder delivers absolute positioning accuracy and exceptional repeatability performance—exactly what your critical processes demand.

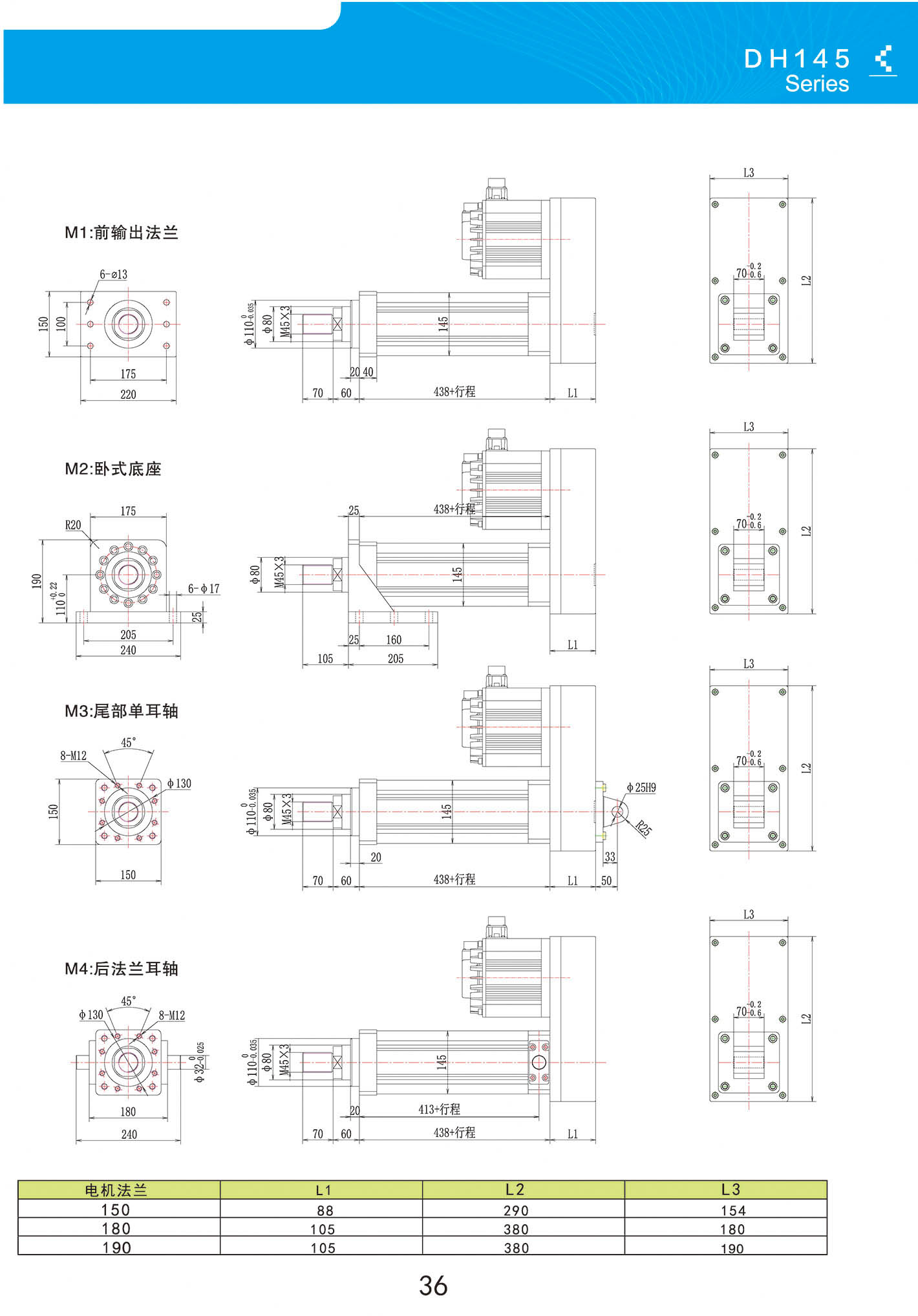

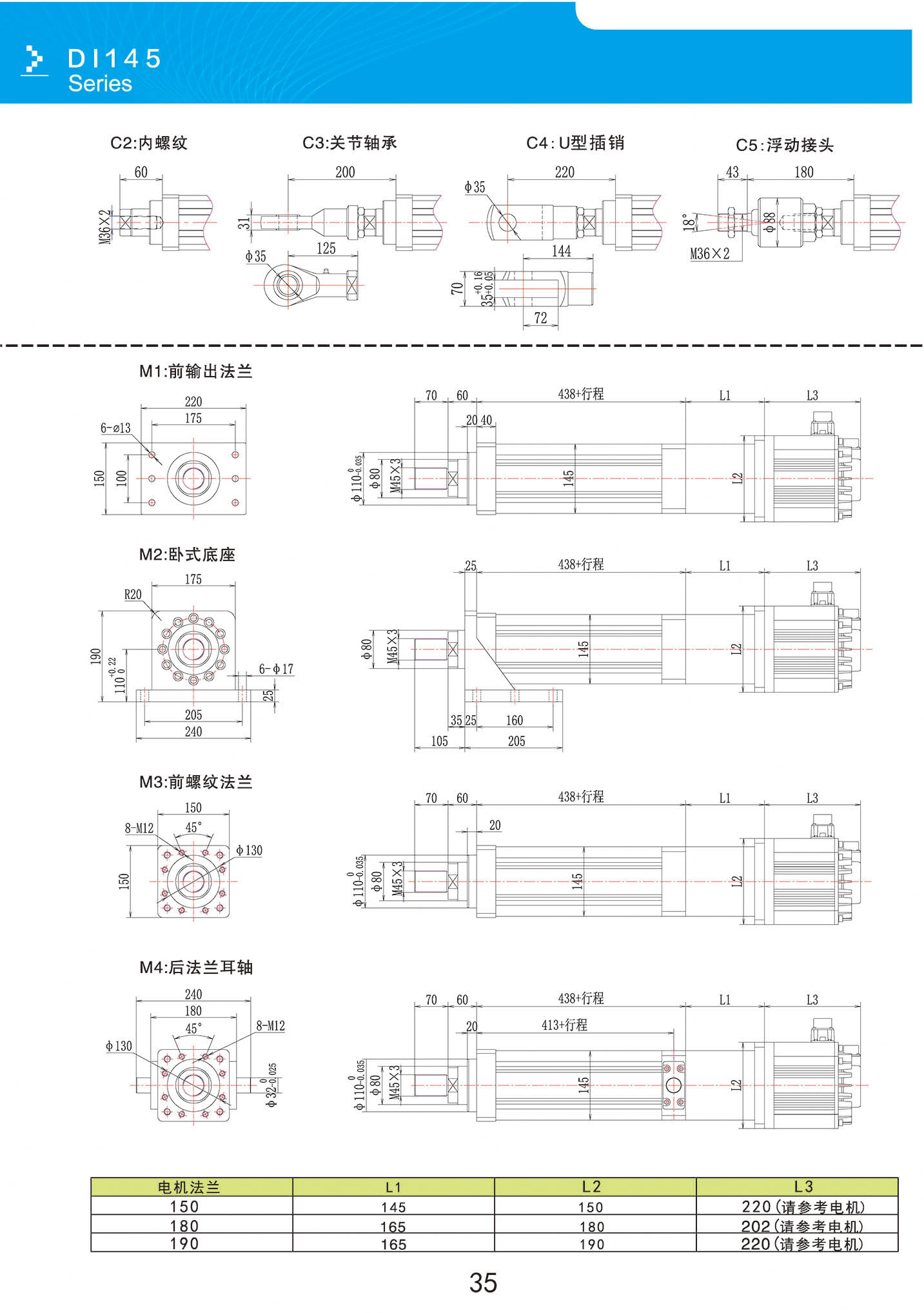

Custom Engineering Solutions: Every 145 Series cylinder can be configured to your exact requirements, from custom stroke length (up to 2000 mm) to a variety of mounting options—flange, trunnion, or clevis. Optimize your system with tailored fit and peak performance.
High Force and Dynamic Speed Range: With thrust capabilities that typically reach from 10 kN up to 70 kN and rapid velocity profiles (up to 1500 mm/s), this heavy-duty electric actuator is perfect for industrial automation components, press fitting, and high-force manufacturing tasks.
Industrial Robustness and Longevity: Crafted from rugged, high-grade aluminum and stainless steel, the 145 Series is not just built—it’s engineered for harsh environments. The IP65-rated design shrugs off dust and water, making it a reliable choice for food processing, pharmaceutical, and clean room compatible actuator requirements.
Seamless Integration: Compatible with NEMA servo motors and all industrial closed-loop servo systems, the cylinder easily interfaces with PLC integration, fieldbus communication protocols (EtherCAT, PROFINET), and a range of position feedback devices—absolute or incremental encoders for position control, velocity control, and force control.
Maintenance-Free, Low-Noise Operation: Advanced engineering ensures whisper-quiet, maintenance-free performance, translating to lower total cost of ownership and a quieter working environment—ideal for medical device manufacturing and semiconductor equipment.

Wide Applications

This linear electric actuator is the ideal choice for your most challenging automation projects, including: precision robotic dispensing, automotive production line assembly, packaging machinery, pharmaceutical automation, and advanced testing equipment where high accuracy linear motion and reliability are non-negotiable.

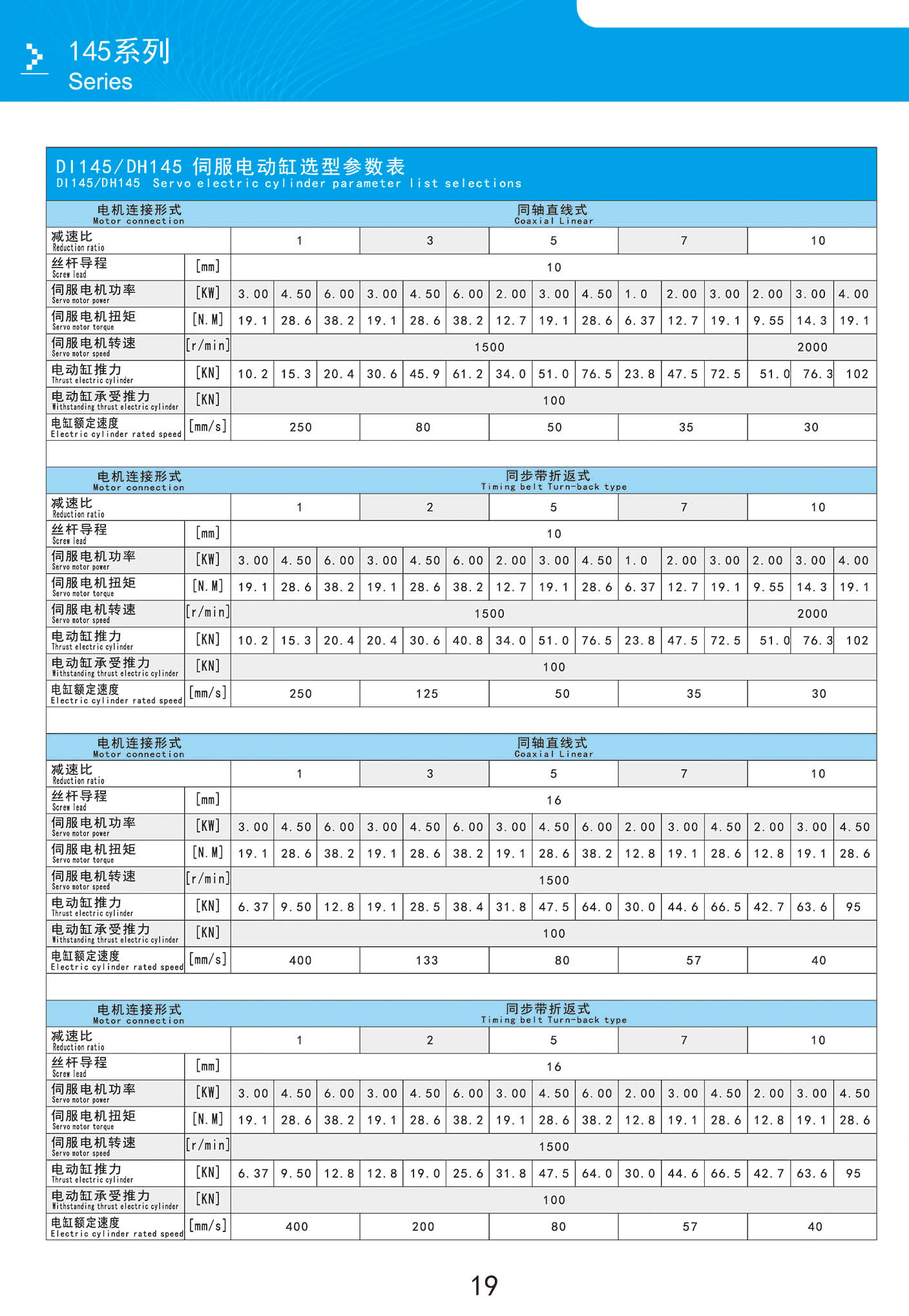

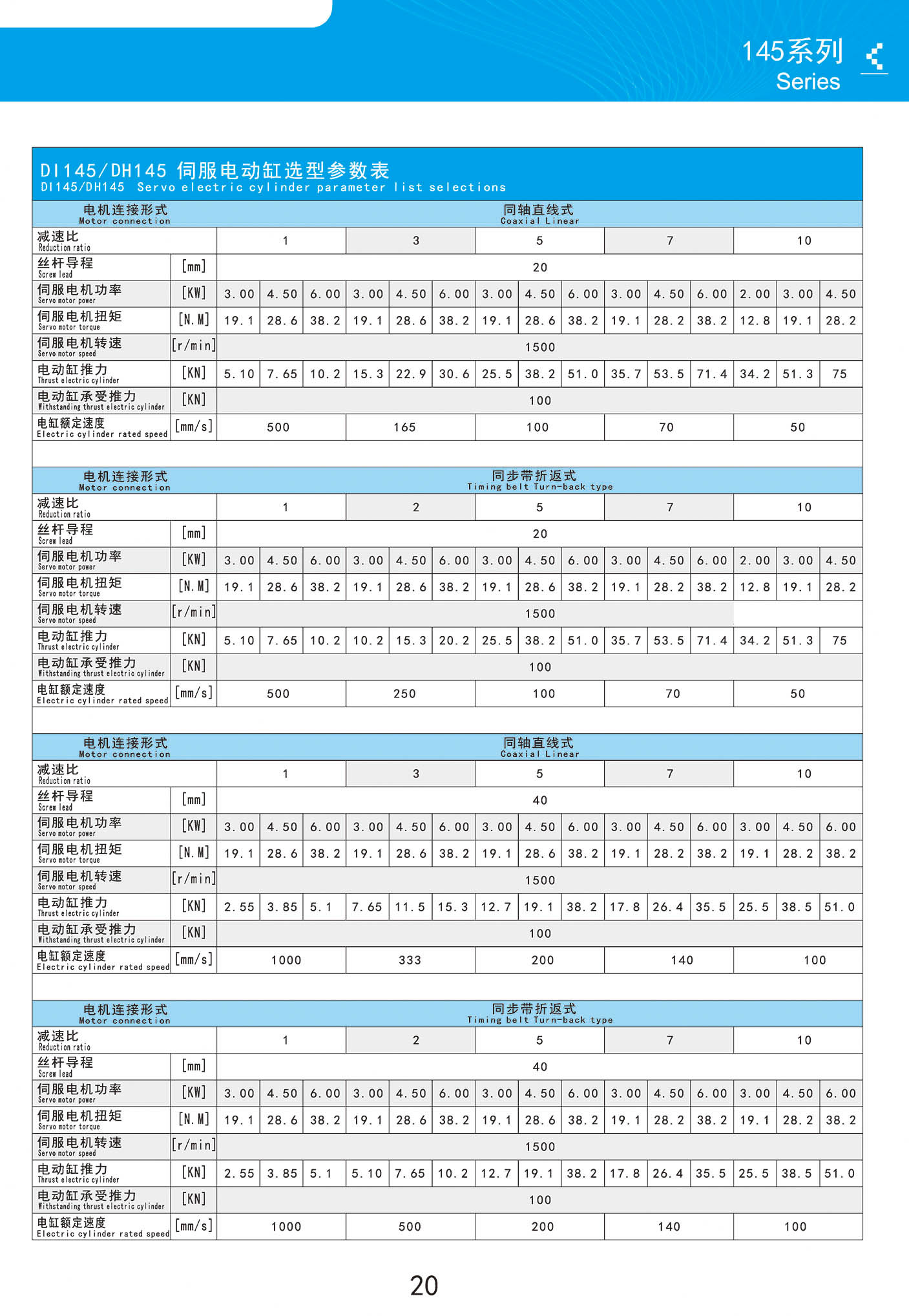

Specifications

Force: 10 kN to 70 kN (application-dependent, custom options available)
Speed: Up to 1500 mm/s (high speed electric cylinder configuration)
Stroke Length: 50 mm to 2000 mm (custom stroke length support)
Input Voltage: Industrial servo drive compatible (configurable based on drive requirements)
Protection Rating: IP65 (dust- and water-resistant, suitable for harsh environments and cleanroom installations)

Technical Support

We provide comprehensive technical support for this product—including downloadable CAD models, detailed technical datasheets, wiring diagrams, and expert engineering advice—ensuring fast, seamless integration and minimum commissioning effort.

Conclusion

When you need automation components that never cut corners on quality, count on Jimmy Technology’s 145 Series Custom Servo Electric Cylinder to deliver cutting-edge performance, tailored design, and lasting reliability—every time.
